Steel and Glass Room Divider with Door Opening - How It Works

Three ways to divide a room with glass and steel

A glazed steel room divider with a doorway is not a single item off a shelf - it is a combination of elements, and choosing your build route early saves you from measuring everything twice. Manufaktur X produces every variant made to measure in the EU, configured through an online tool that calculates a fixed price from your exact dimensions as you enter them.

British homes present a particular set of constraints that make this choice worth thinking through carefully. Victorian terraces often have corridor-style layouts with narrower door openings and walls that have shifted over a century of settlement. Edwardian semis tend to have slightly more generous proportions but original plasterwork that bows between structural points. 1930s semi-detached houses often have doorways widened during mid-century renovations, so the measured opening rarely matches what the floor plan suggests. Period conversions - especially those where a large Victorian house has been split into flats - frequently feature non-standard ceiling heights and openings that are taller than modern building convention.

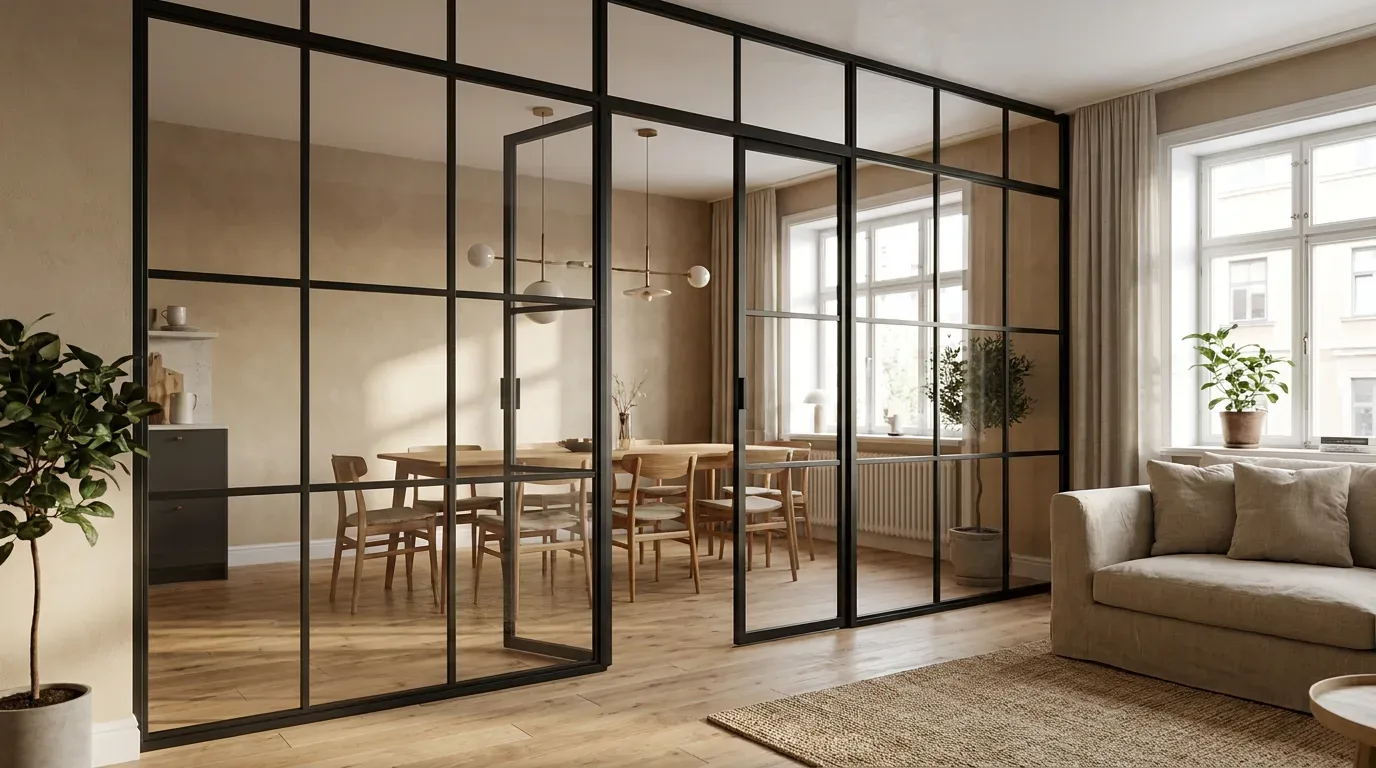

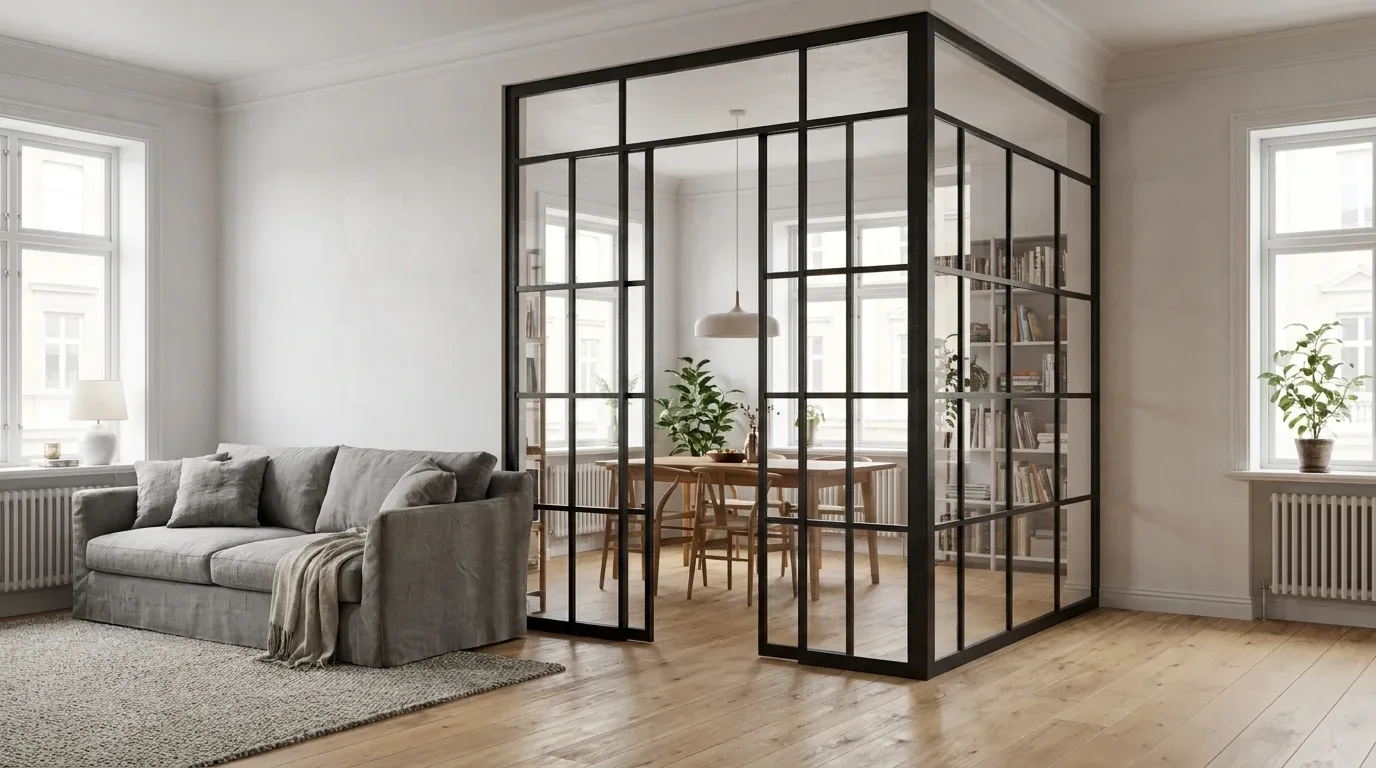

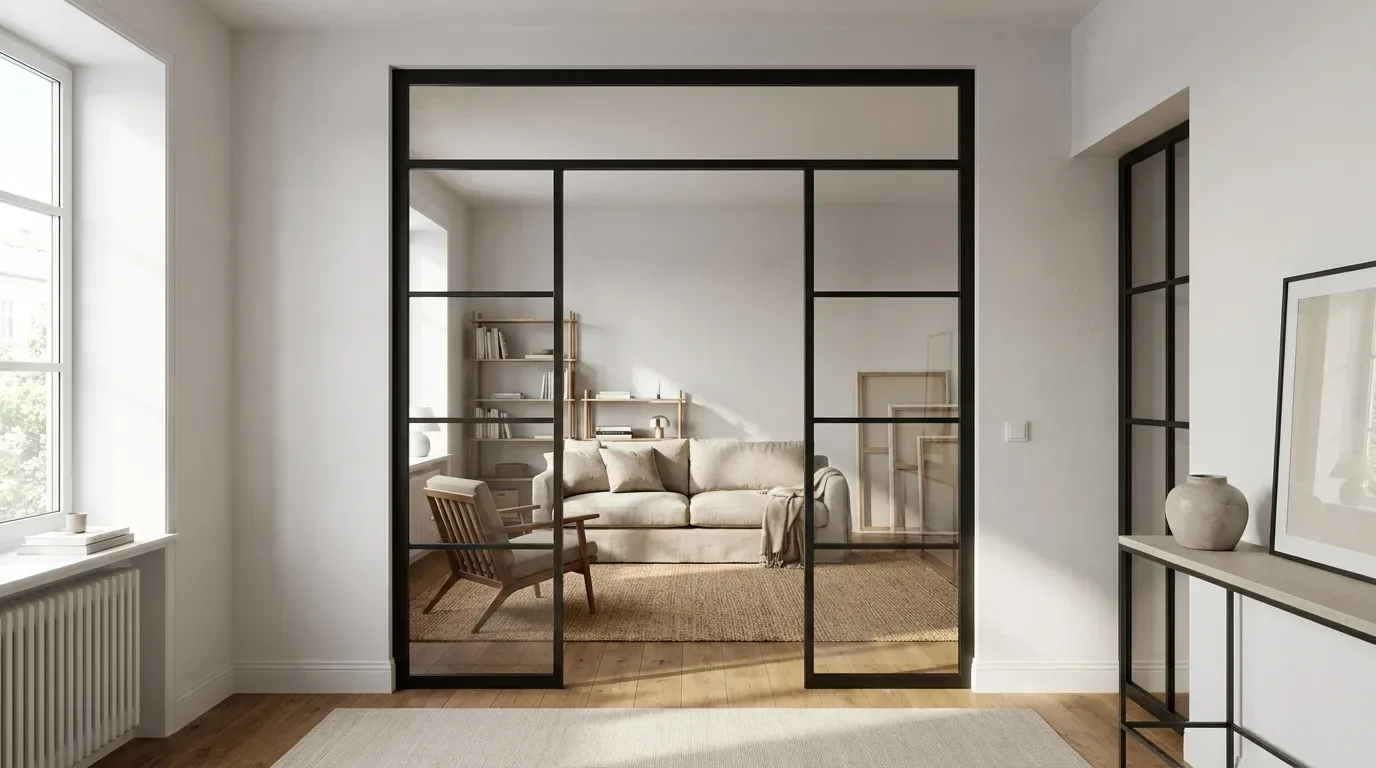

Open passage only

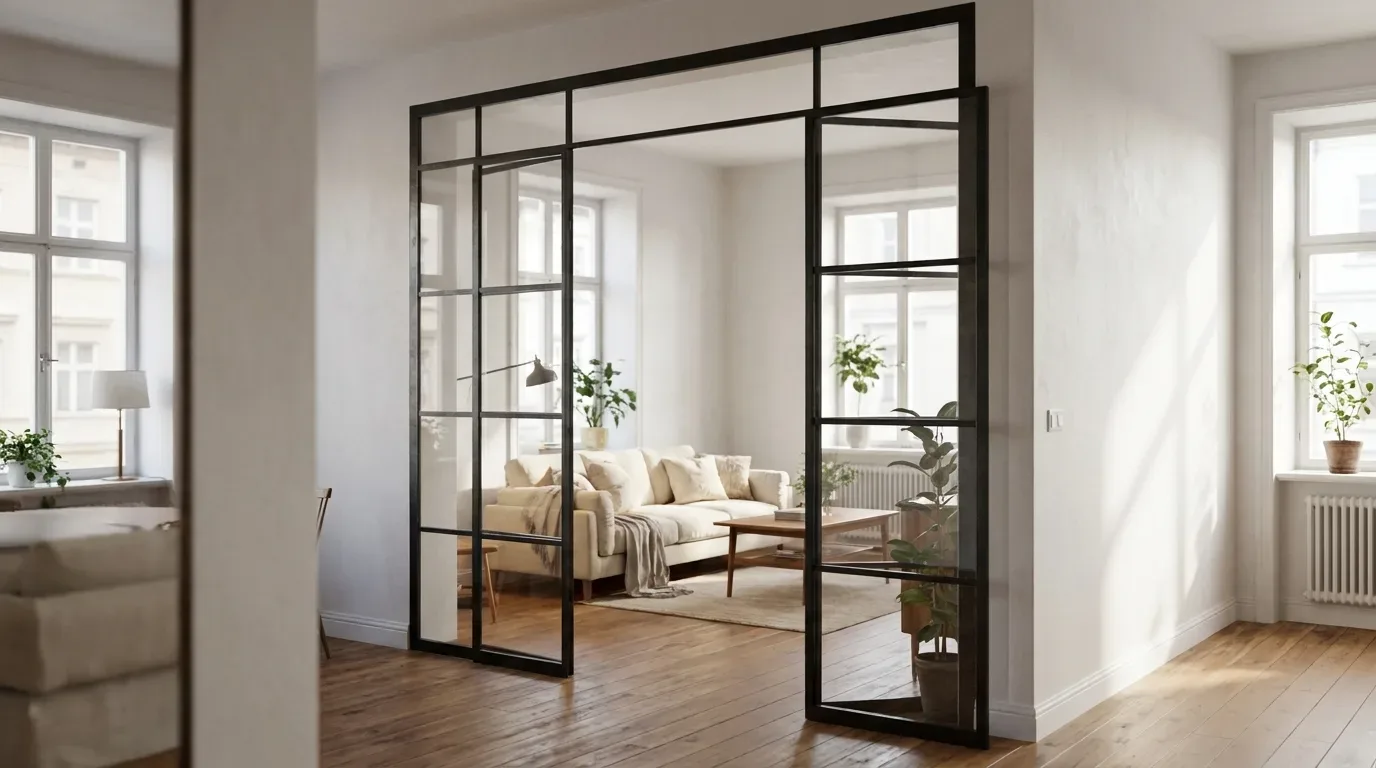

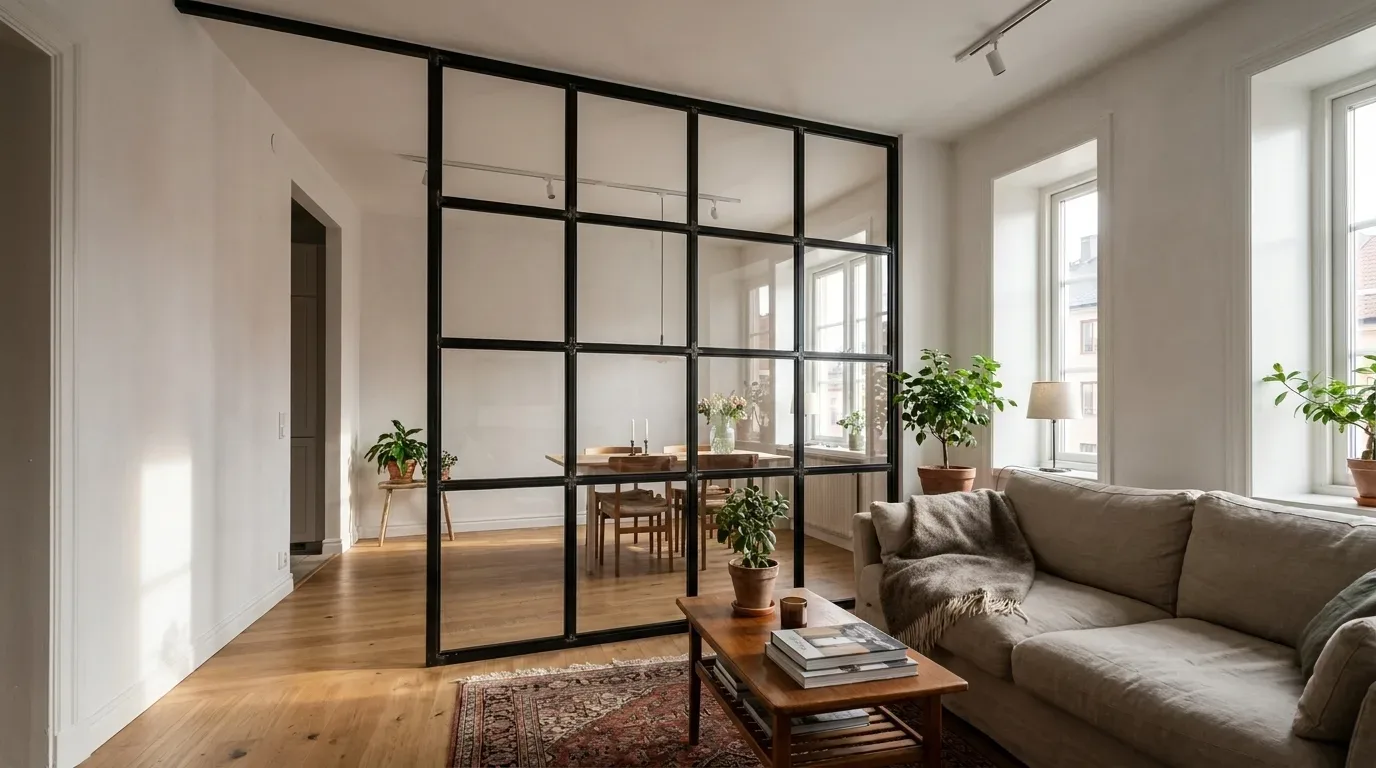

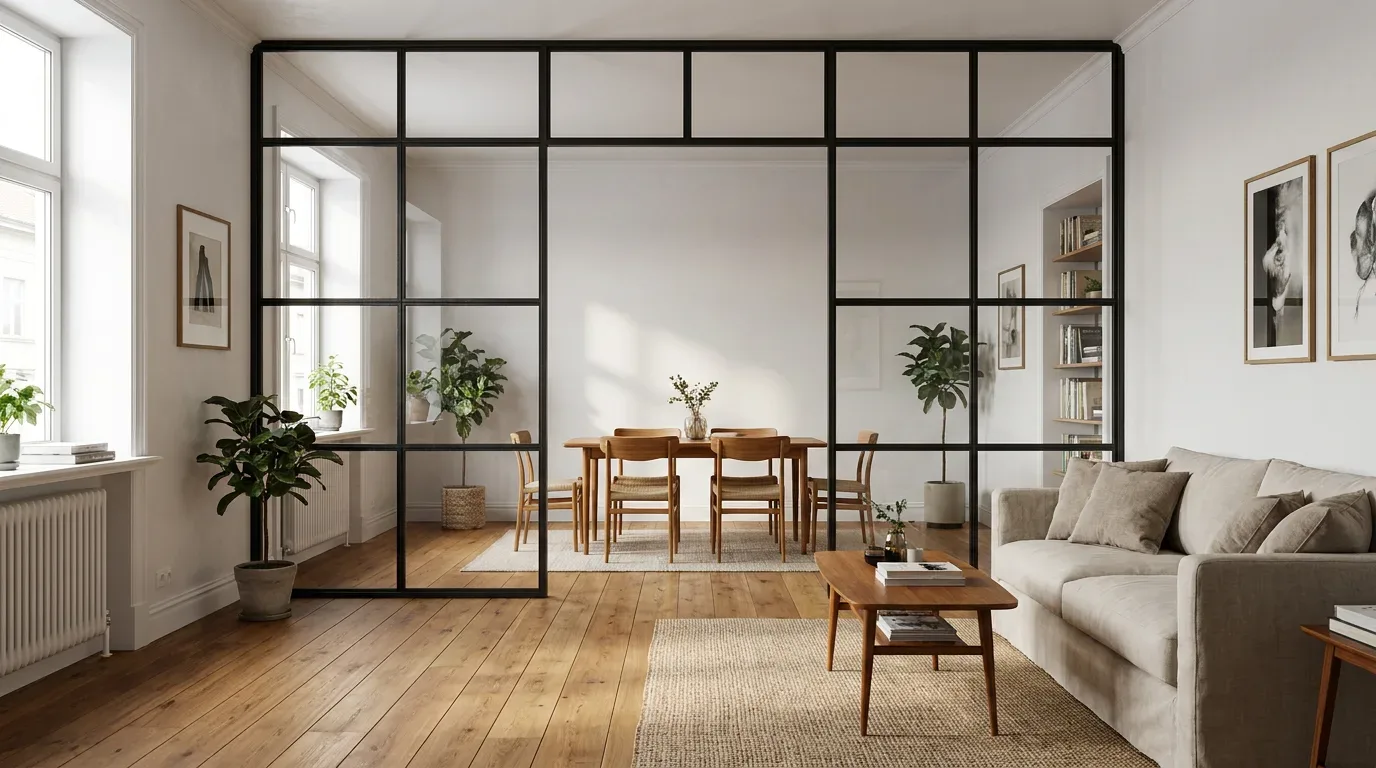

The simplest approach is a steel and glass partition with a permanent walk-through opening - the gap stays open at all times, so light and air move freely between zones. Nothing swings, nothing latches. This works particularly well in kitchen-to-dining layouts and in hallways where you want a visual boundary without ever needing to close anything.

Partition paired with a hinged loft door

Most closable projects combine the fixed partition with a hinged loft door in the matching Crittall-style steel frame. The partition carries no hinges or handle - those come with the separately configured door leaf, sized for the opening you planned. Together the two elements read as one glazed wall that shuts when you genuinely need it to.

Loft door as the sole divider

For a standard door-width opening, the loft door itself can act as the divider - a single or double leaf with optional side panels fills the gap without a separate partition. This keeps the build lighter and the planning more straightforward, and it suits the kind of reception-room-to-hallway opening found in many Victorian and Edwardian properties.

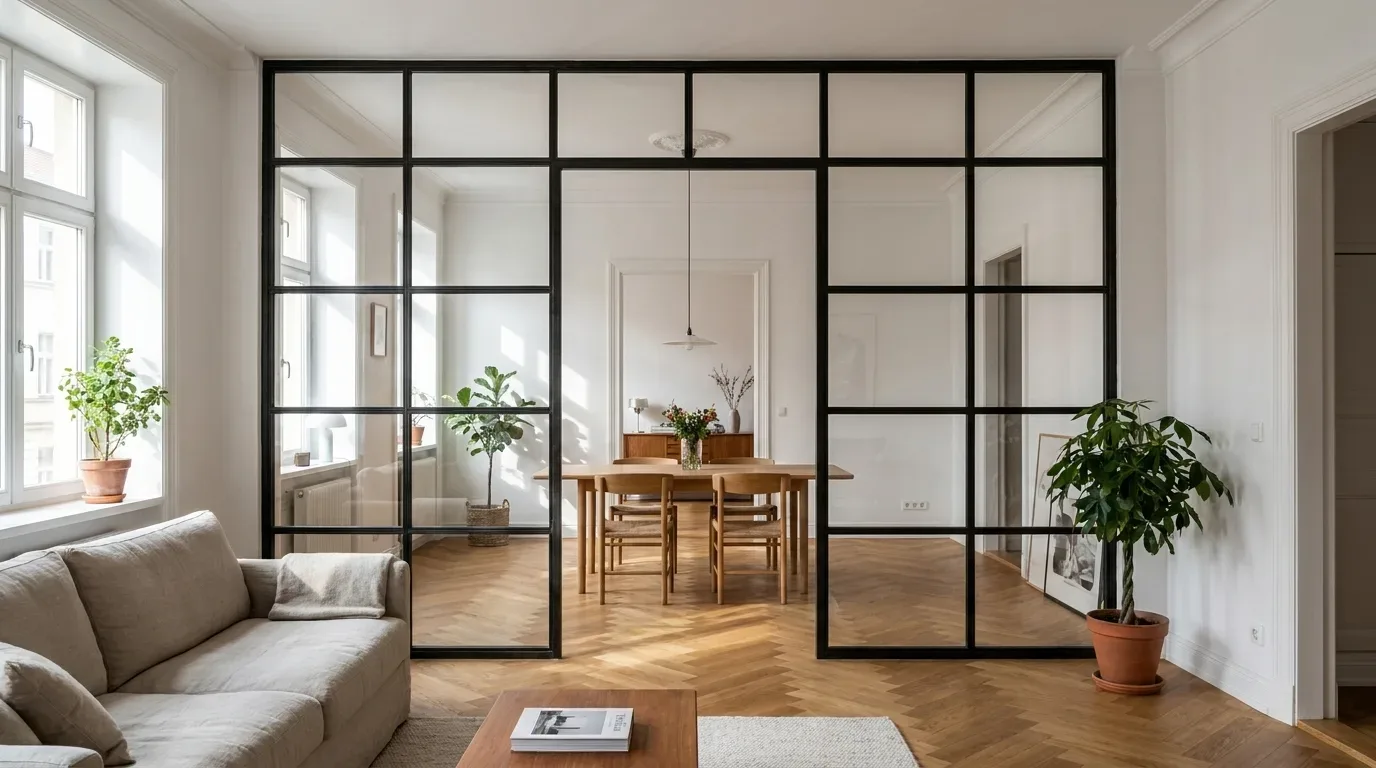

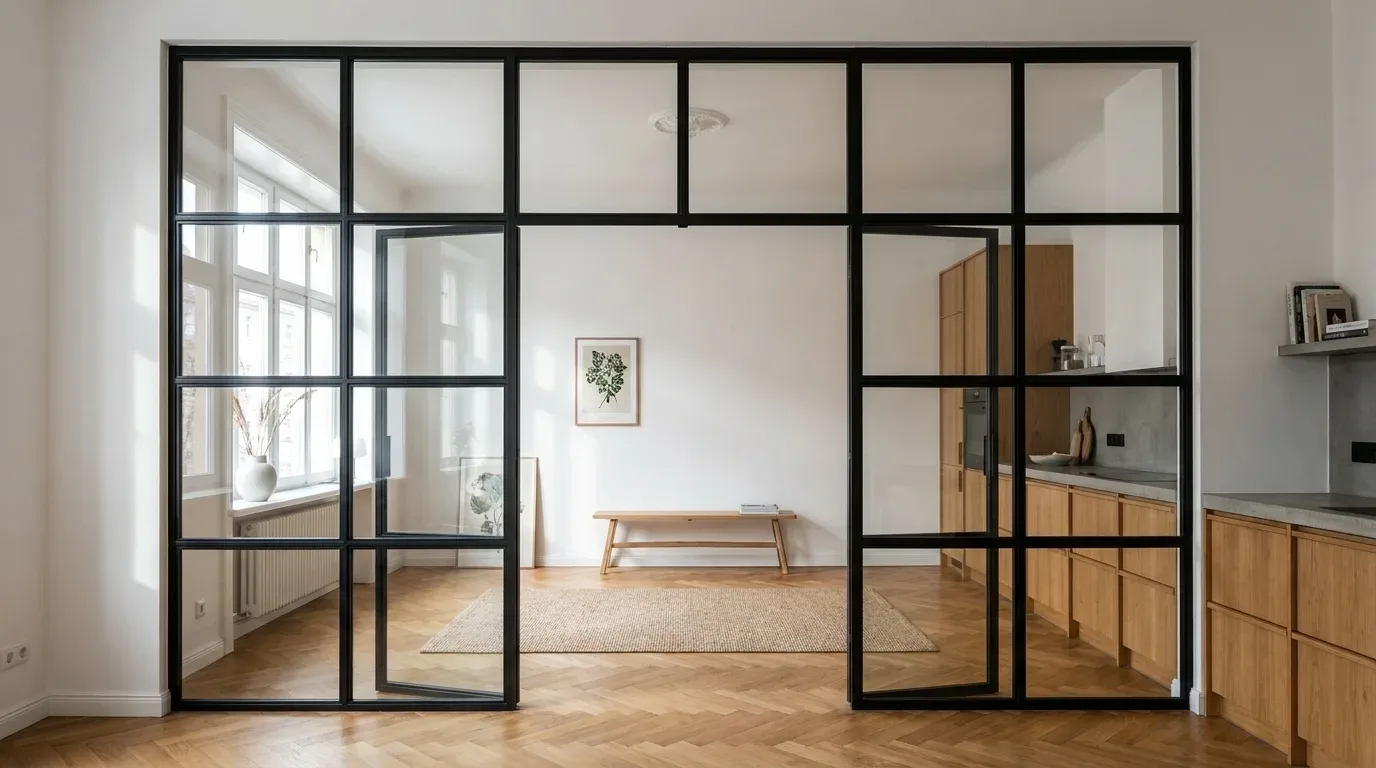

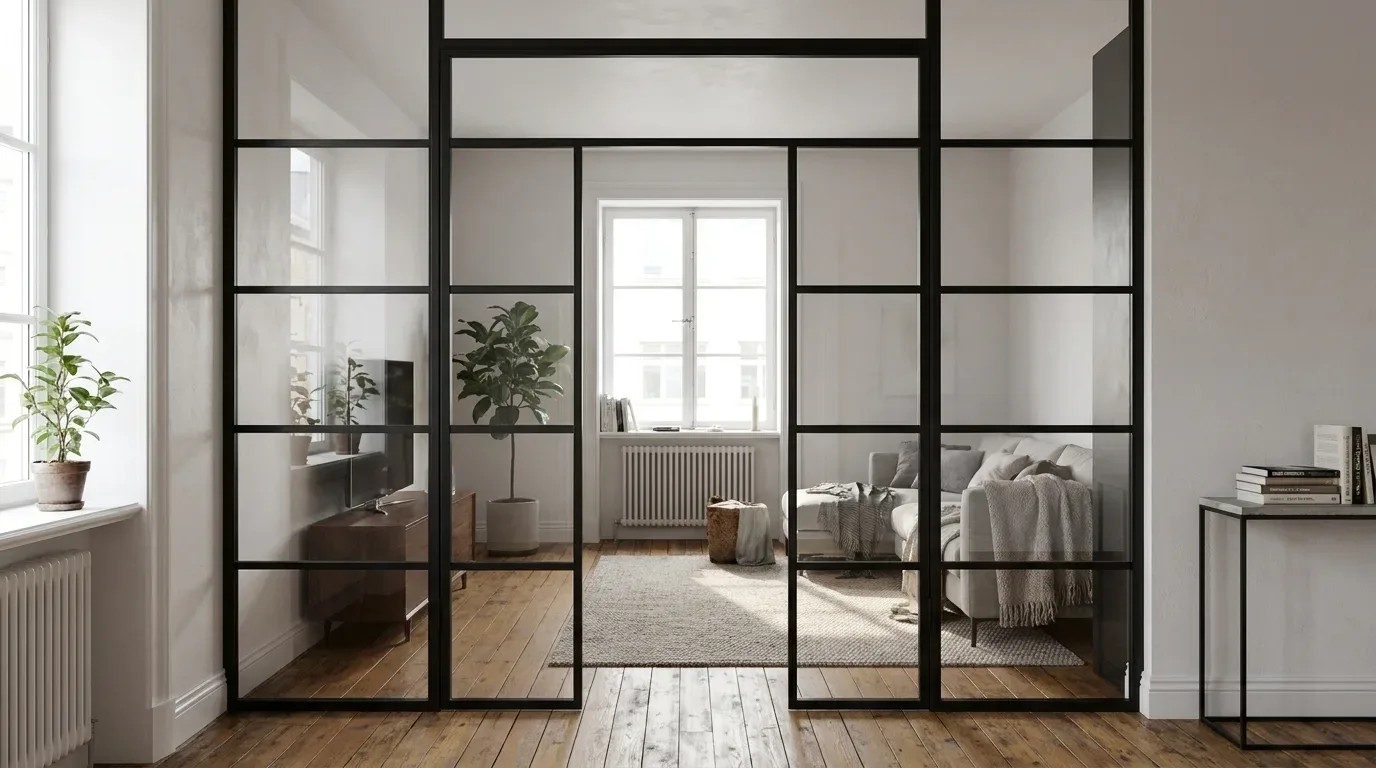

How the walk-through opening works - and why it cuts the price

The walk-through opening is a planned gap in the partition with its own width and height, set directly in the online configurator. Because it replaces glass area, it reduces the total price rather than adding to it. You set it while configuring the partition: overall width and height first, then the passage dimensions within it. The powder-coated steel frame runs around both the partition and the opening - there is no frameless variant. Everything surrounding the passage is fixed; no leaf, no handle, no hinges. Anything that moves belongs to the loft door element, not here.

Setting opening dimensions in the configurator

In most of our UK projects, walk-through openings land between 80 and 100 cm wide - roughly in line with standard British interior door widths of 762 mm and 838 mm. Taller passages work equally well; the steel frame simply follows the dimensions you enter, up to the full height of the partition.

Why a larger opening means a lower quote

Glass is the largest cost component of the partition, so every square metre you replace with open passage takes real money off the total. Increase the opening width in the 3D configurator and the price updates in the same moment. You can compare a generous and a narrow passage in under two minutes if you test the opening dimensions in the room divider configurator. The pricing works equally in both directions: more glass area means a higher total, and the fixed price is always visible before you commit to anything.

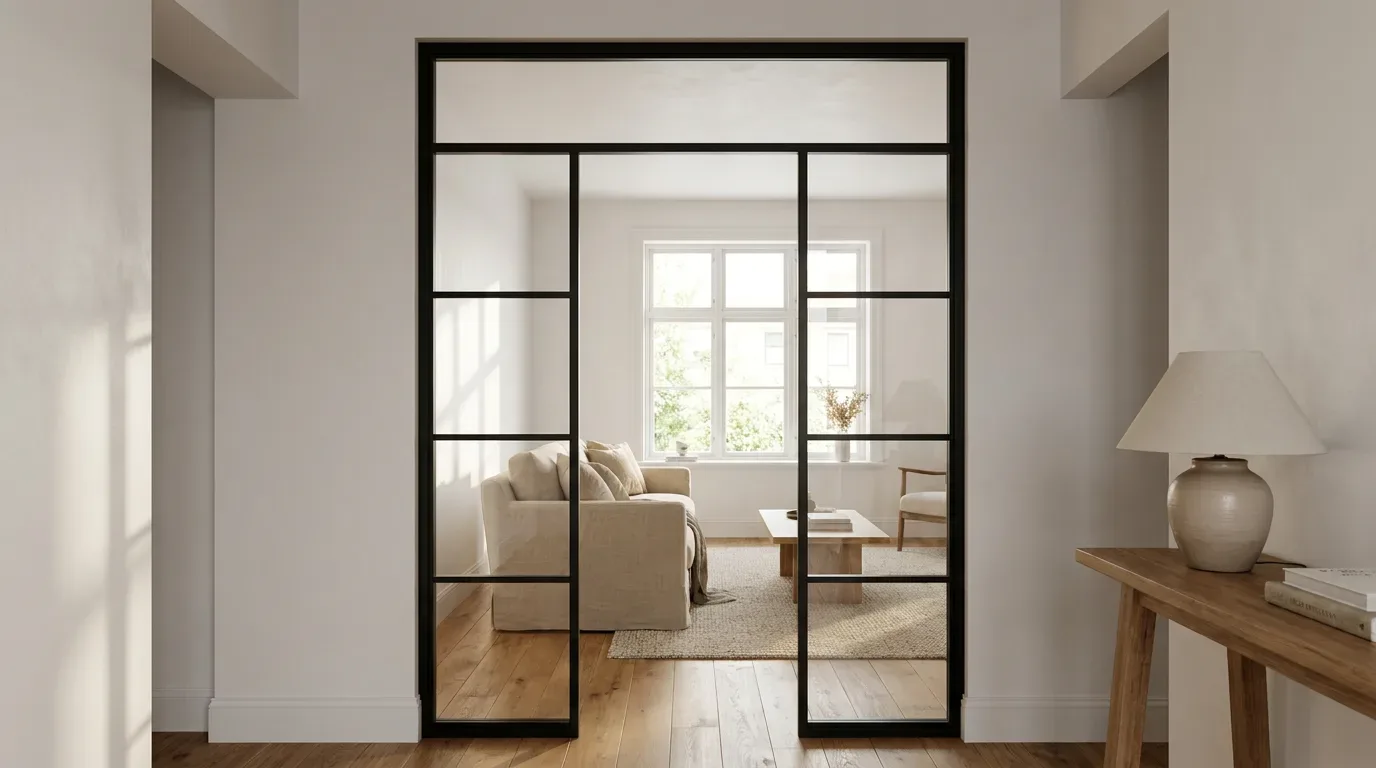

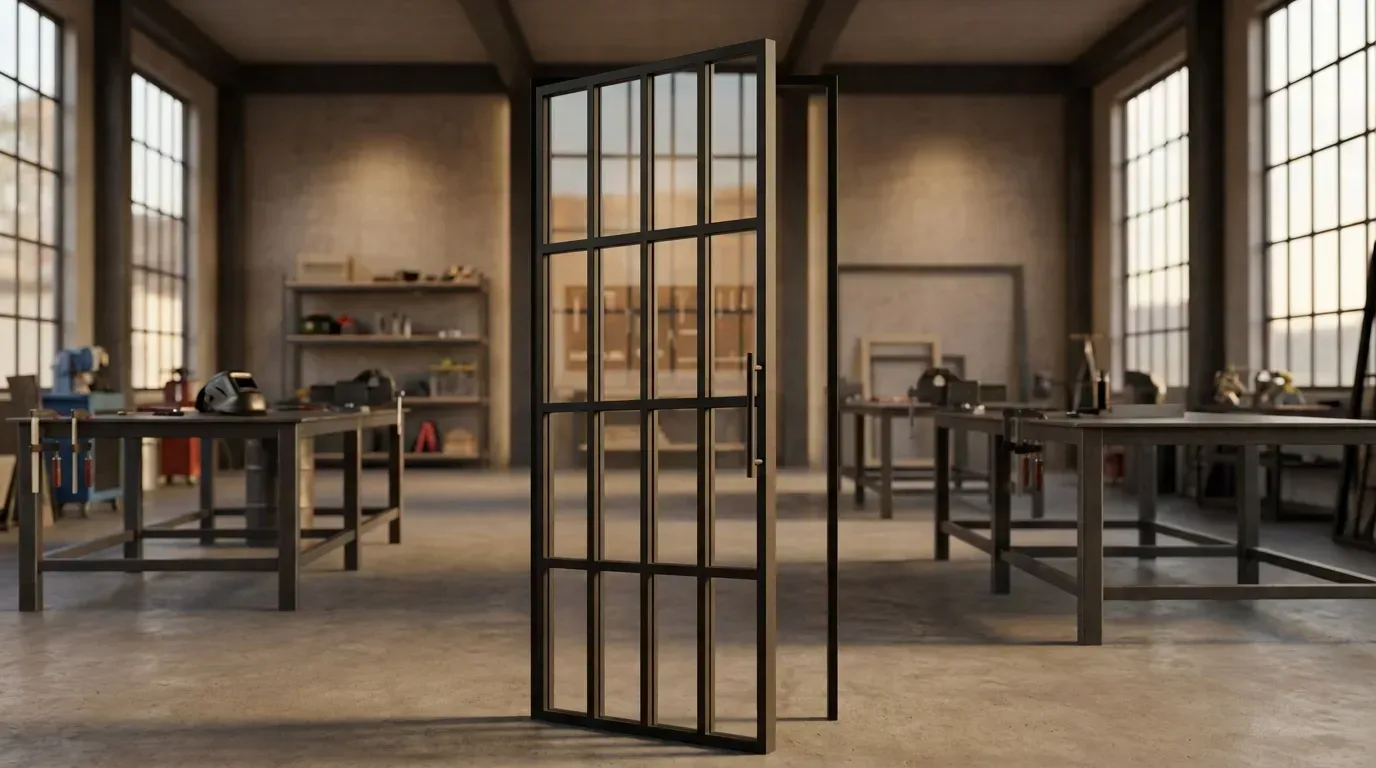

Pairing the partition with a hinged loft door

The door in this combination is always a separately configured hinged loft door - single leaf, double leaf or pivot - sized to the walk-through opening in the partition. Industrial-style Crittall glazing has become a fixture of British interior design, from converted warehouses in east London to new-build flats adopting the aesthetic. The loft door brings exactly that look into the opening. Four decisions take you from an open passage to a properly closing door.

1. Fix the opening dimensions first. The door leaf is sized to the passage, not the other way around - configure the partition, then choose the door dimensions to match the opening it leaves.
2. Choose the leaf type. Single, double or pivot, depending on opening width and how much floor space the swing arc can claim.
3. Set the hinge side, opening direction and lock. Hinge left or right, the opening angle to suit your room layout, and a magnetic catch that holds the leaf shut without a conventional latch.
4. Match RAL colour, glass type and bar grid across partition and door so the two elements read as a single glazed wall rather than two separate products placed side by side.

Single leaf, double leaf or pivot

A single leaf covers openings up to roughly one standard door width and requires the least planning. Double leaves split a wider passage symmetrically, so each side swings a shorter arc - useful in a period conversion where floor space is generous but you do not want one leaf dominating the room. Pivot doors rotate on a vertical axis and suit wider openings treated as a deliberate design feature.

Hinge side, opening angle and magnetic catch

Choose the hinge side based on how you approach the doorway: the leaf should swing away from the main walking route, never into it. Three handle designs are available, and the powder coating covers handle and frame in the same RAL colour throughout - no mismatched finishes between the two elements.

Matching colour, glass and bar pattern across both elements

The visual unity of the combination depends entirely on identical codes: one RAL colour across both frames, one glass type across both elements, and the same bar spacing throughout. Even a closely related but different shade of grey reads as two separate products when the two are side by side. Specify the same codes for both and the pair disappears into the wall as one piece.

Glass types, safety ratings and bar patterns

Any partition positioned alongside a doorway is glazed in safety glass - ESG (toughened) or VSG (laminated) - in one of five glass types applied uniformly across the whole partition. The options are clear, frosted, smoked, dark smoked and textured. One type covers every panel of the divider with no panel-by-panel mixing and no mirror glass. Frosted glazing keeps a home office visually private while still allowing daylight to cross the room; clear glass keeps a smaller flat feeling open even when the door is closed.

Choosing the right glass type

Start with function, then consider appearance. Privacy calls for frosted or textured glass, atmosphere for the two smoked tones, and maximum natural light for clear. Whichever you select runs through every panel of the partition and, if you mirror it across the loft door, through every panel of that too.

Toughened ESG versus laminated VSG

Toughened ESG (per EN 12150) shatters into small, blunt granules on impact. Laminated VSG (per EN ISO 12543) holds broken fragments against its interlayer film, so the pane stays in position until it can be replaced - a meaningful difference in a wall that people brush past daily with a swinging door beside it. For larger panels and busy passageways, VSG is the practical choice.

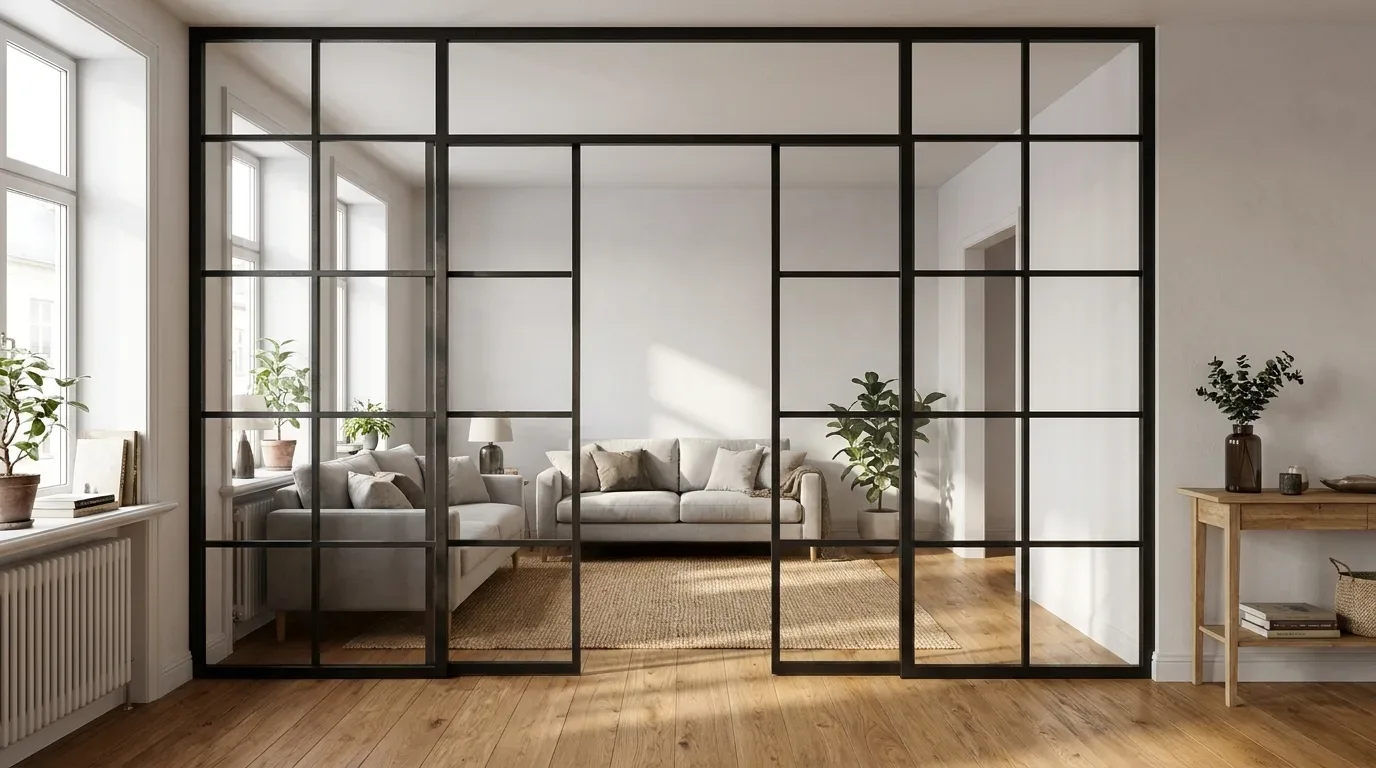

Bar patterns - evenly spaced, always

Horizontal and vertical bars are distributed evenly across the glazing at all times. The configurator does not allow an asymmetric grid or freely sized individual panels - which keeps the geometry calm and ensures the bar spacing on the partition lines up cleanly with the bar spacing on the loft door beside it.

For partitions in converted properties, I always specify safety glass with a bar grid - it gives visual lightness, handles the daily traffic of people passing through, and keeps the industrial character that works so well in period spaces.

Lukas Brandt
Loft Renovation Specialist

How to measure your opening accurately

Measure width and height at several points and use the smallest value each time. Walls in older British properties - Victorian terraces, Edwardian semis, inter-war semis - are rarely straight from top to bottom or side to side. Plaster bows, floors slope a few millimetres over a metre, and corners drift out of square after a century of seasonal movement. Steel does none of those things. The most common reason a made-to-measure partition does not fit is a measurement error, not a production fault - and our project data bears this out: in roughly 70% of partition and loft door installations, customers find a measurably different reading on the left side of the opening compared with the right. Configure to the tightest point, every time.

If you would rather hand off the measuring entirely, installation partners available through Manufaktur X handle on-site measuring and fitting.

Where to take your measurements

Take the width at three heights - top, middle and bottom - and the height at three positions - left, centre and right. Note the smallest reading from each set and enter those two figures into the configurator. Those are the dimensions the steel is cut to.

Clearance for the hinged door element

Reserve roughly 5 mm of mounting clearance on each side for the door element within the measured opening. This is the figure most often left off the planning list - and it is explained in the pairing section above for exactly that reason.

Skirting boards, sockets and radiators

Anything that projects into the opening plane reduces the usable dimension: skirting boards at floor level (common in Victorian and Edwardian rooms), socket housings at mid-height, and radiator pipework or valves at the wall edge. Measure to the obstacle, not past it. Period properties in particular tend to have deeper skirting than modern builds, and that depth can take several centimetres off what the opening appears to offer.

• Width at three heights - note the smallest value
• Height at three positions - note the smallest value
• Roughly 5 mm clearance per side reserved for the hinged door element
• Skirting boards, sockets, radiators and floor transitions checked within the opening plane
• Full door swing arc confirmed as clear on the floor

Planning mistakes that cause real problems

The mistakes that derail a project like this happen at the planning stage, not in production. Three patterns account for the vast majority of cases our team deals with: using floor plan figures instead of tape-measure readings, forgetting the door swing arc, and sizing the passage too narrowly for practical daily use.

Floor plan dimensions versus the built reality

The architect's drawing says 240 cm; the plastered, skirting-boarded, paint-layered reality measures something else at its tightest point. This matters especially in older British properties where floor plans are often estimated rather than surveyed, and where rooms have been altered at various points over the decades. A made-to-measure partition cut to the floor plan figure and not the taped measurement will not fit the tightest point of the actual opening. Ten minutes with a tape and a notepad prevents this entirely.

The door swing arc - the dimension people forget

A 90 cm leaf sweeps an arc of 90 cm across the floor every time it opens. A sideboard, a radiator or even a dining chair placed inside that arc means the door lives permanently at half-open - a closable partition that can never actually close. Tape the full arc on the floor before you order and rearrange the furniture first, not after delivery.

A passage that is too narrow for daily life

An opening planned at bare body-width feels uncomfortable within a week and fails completely on the one day it really matters: when a large piece of furniture needs to pass through it. A sofa that came through a standard 762 mm British door will not pass a 650 mm opening. Size the passage based on standard interior door widths and remember that the frame and the roughly 5 mm clearance per side sit inside the measured opening - not outside it.

Pricing, lead time and ordering for UK customers

The price of a steel and glass partition with door is driven by glass area, the number of bars, the glass type and the door element - displayed as a live fixed price in the configurator, with production in the EU taking 5-6 weeks. Manufaktur X sells direct from the manufacturer, so the figure you see while configuring is the figure you pay: no showroom margin, no "bespoke surcharge" appearing at checkout. UK delivery and all customs duties are handled in full, so there are no import surprises after the Brexit changes to cross-border purchasing.

Unlike IKEA room dividers or John Lewis shelving units adapted as partitions, this is a purpose-built, dimensionally accurate steel and glass wall - configured to your measured opening, not squeezed into the nearest standard size. The difference in cost reflects the difference in outcome: a partition that actually fits the wall it was made for.

What moves the price up or down

More glass area and a higher bar count raise the total; non-clear glass adds a flat-rate step; and the walk-through opening lowers it by removing glass area from the calculation. The door element is configured and priced separately on top of the partition quote. Every parameter change reprices instantly in the configurator - so you can explore the cost difference between a larger and a smaller opening, or between clear and frosted glass, before committing to anything.

Production and delivery in 5-6 weeks

Both the partition and the loft door are manufactured in the EU in 5-6 weeks. Shipping costs and lead time appear in the basket before you place your order, with no hidden additions afterwards. Installation can be handled by a confident DIYer following the supplied instructions, or handed to a professional fitter.

1. Configure the partition and door element online - dimensions, glass type, bar pattern, RAL colour - with the fixed price updating as you adjust each parameter.
2. Order both elements together so RAL colour, glass type and bar spacing match from the outset.
3. Production runs in the EU workshop over 5-6 weeks.
4. Delivery arrives in the UK with all customs and import duties handled - fit it yourself or arrange a professional installer.
