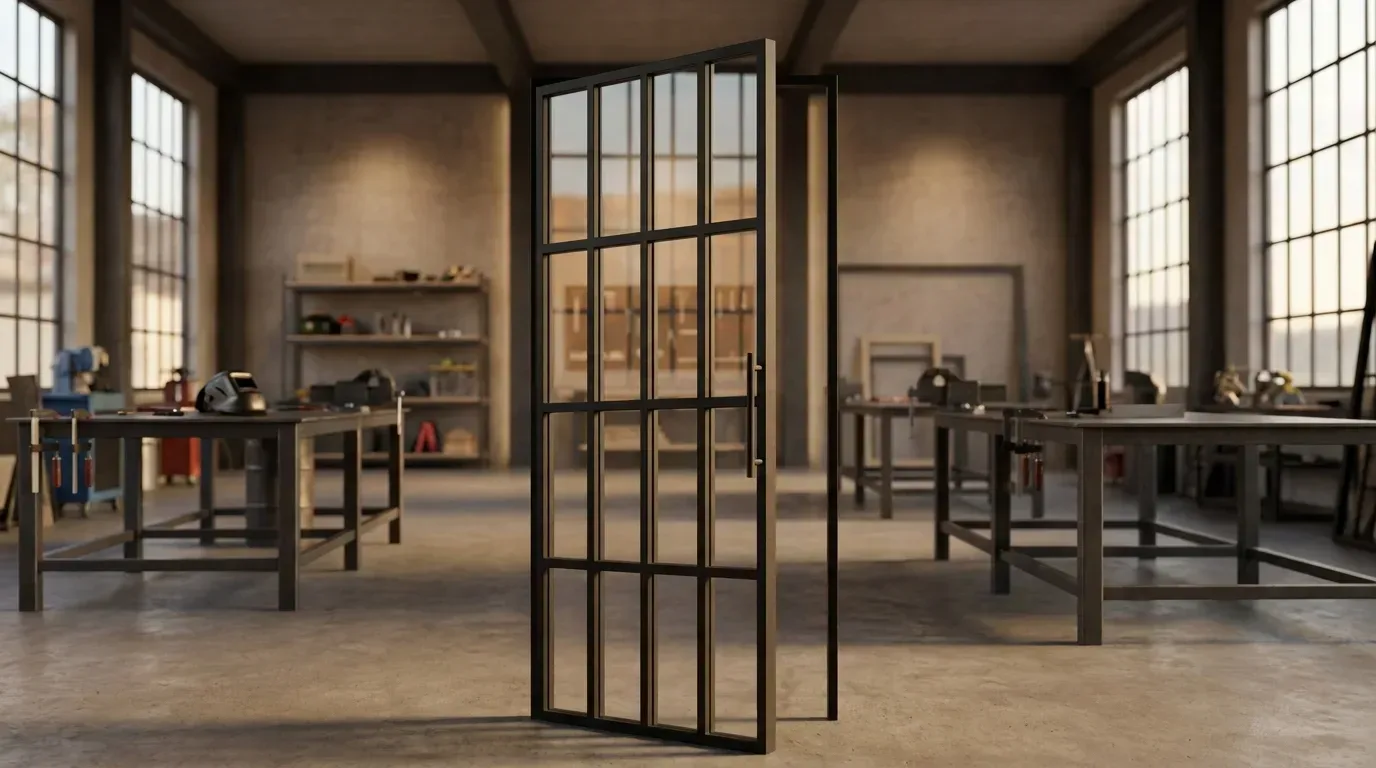

Steel and Glass Room Divider with Door: Partition, Opening and Loft Door Explained

Three ways to divide a room with a door - and which suits your home

Think of it less as a single product and more as a combination you build up in sequence. A fixed steel-and-glass partition creates the wall; a hinged loft door closes its opening when you need it to. Manufaktur X produces every version made to measure in the EU, priced live as you adjust dimensions in the online configurator. The appeal is easy to understand in a British context: Victorian terraces, Edwardian semis and 1930s semi-detached houses were built with separate rooms, then opened up by generations of owners removing chimney breasts and knocking through walls. A steel-and-glass divider gives back the zoning those rooms originally had - without blocking the light a knocked-through space finally gained.

Permanent open passage

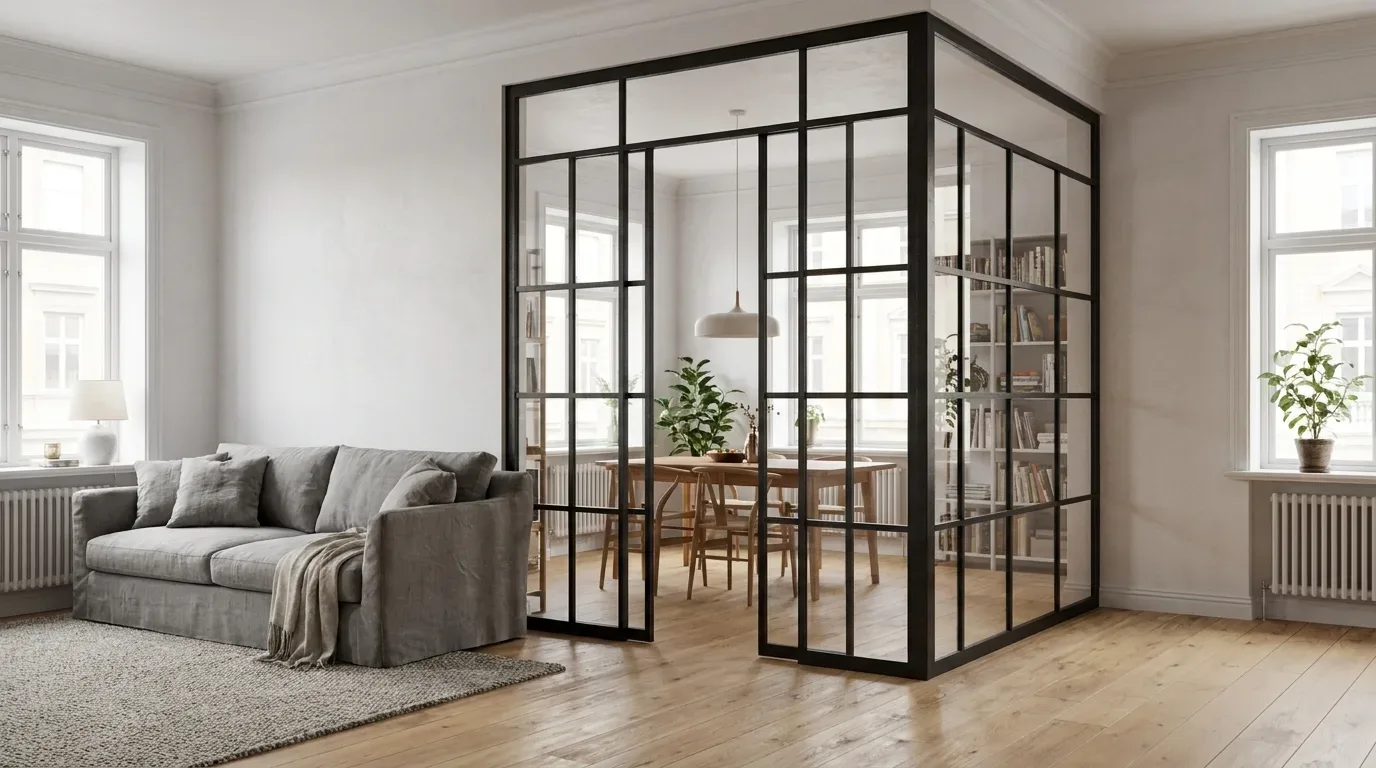

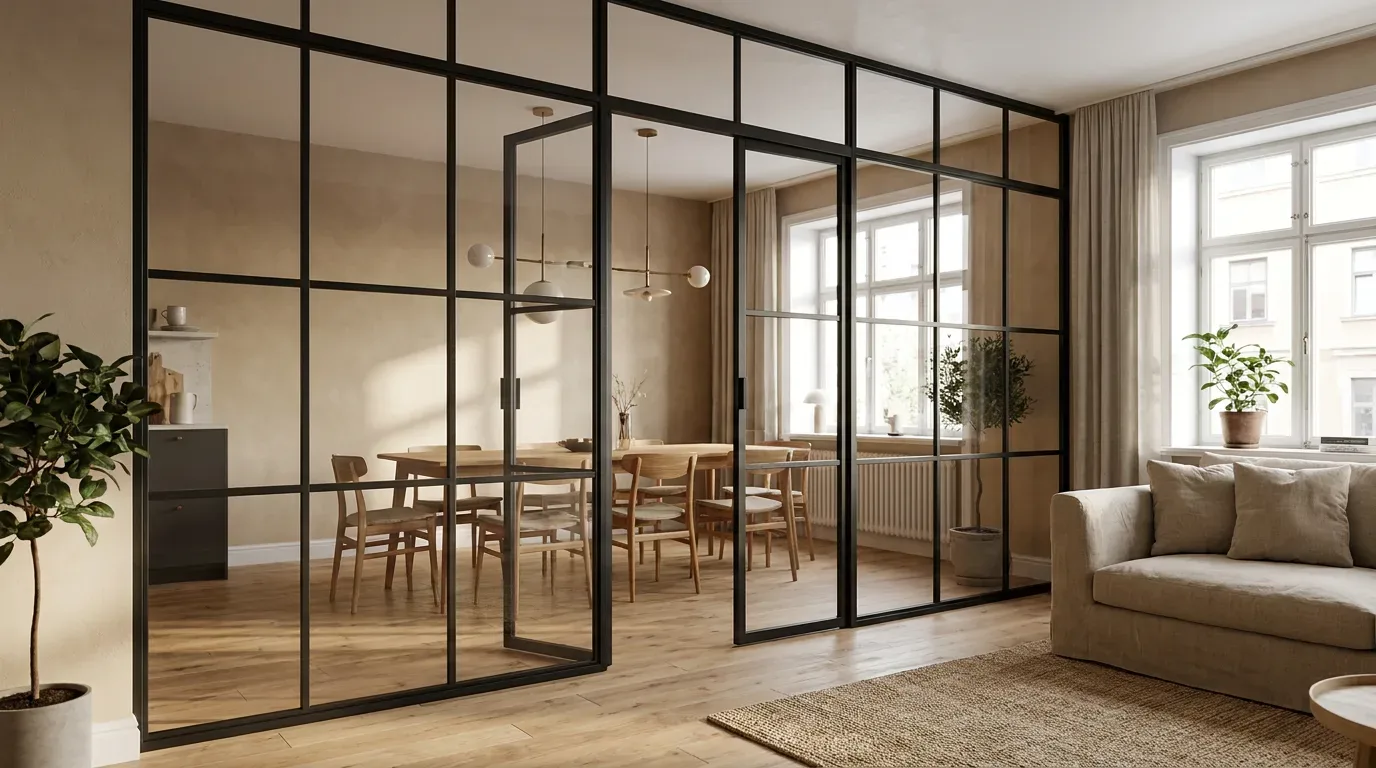

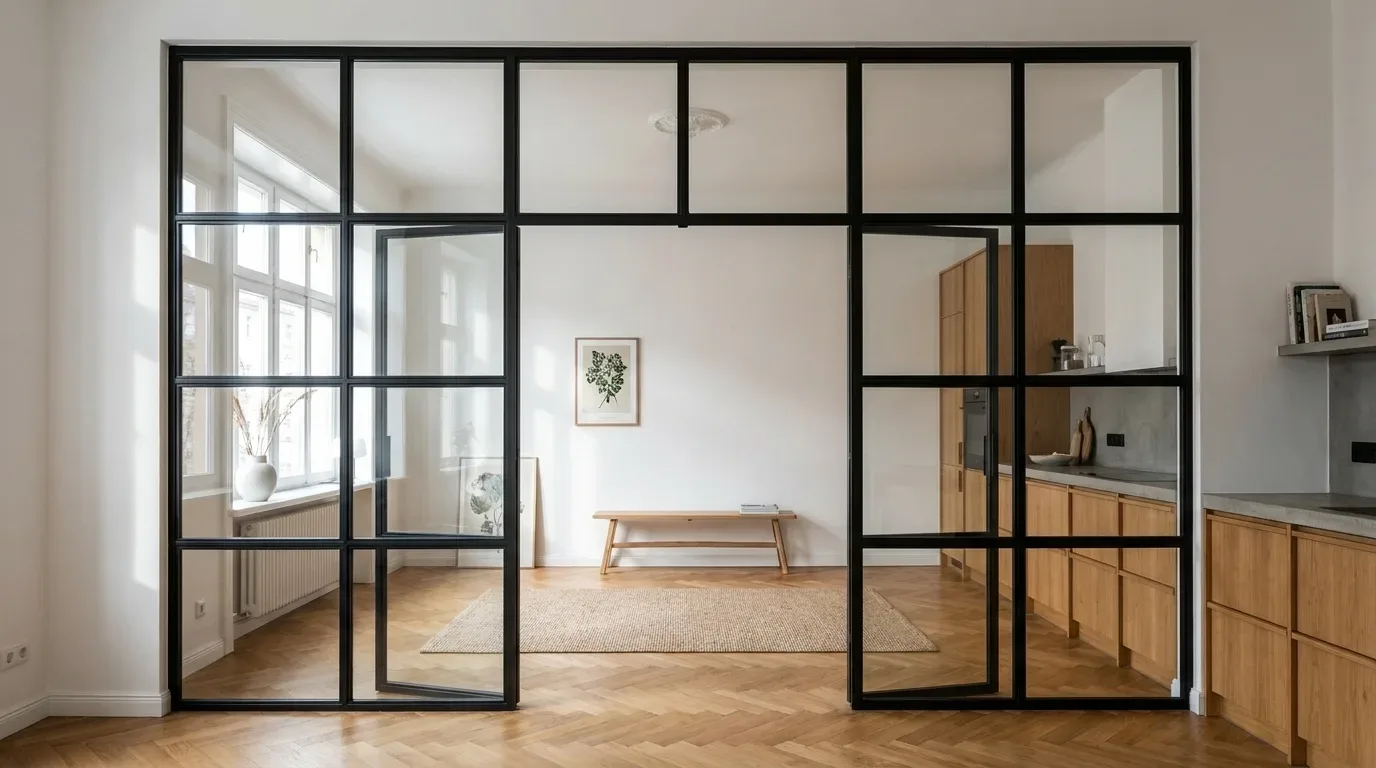

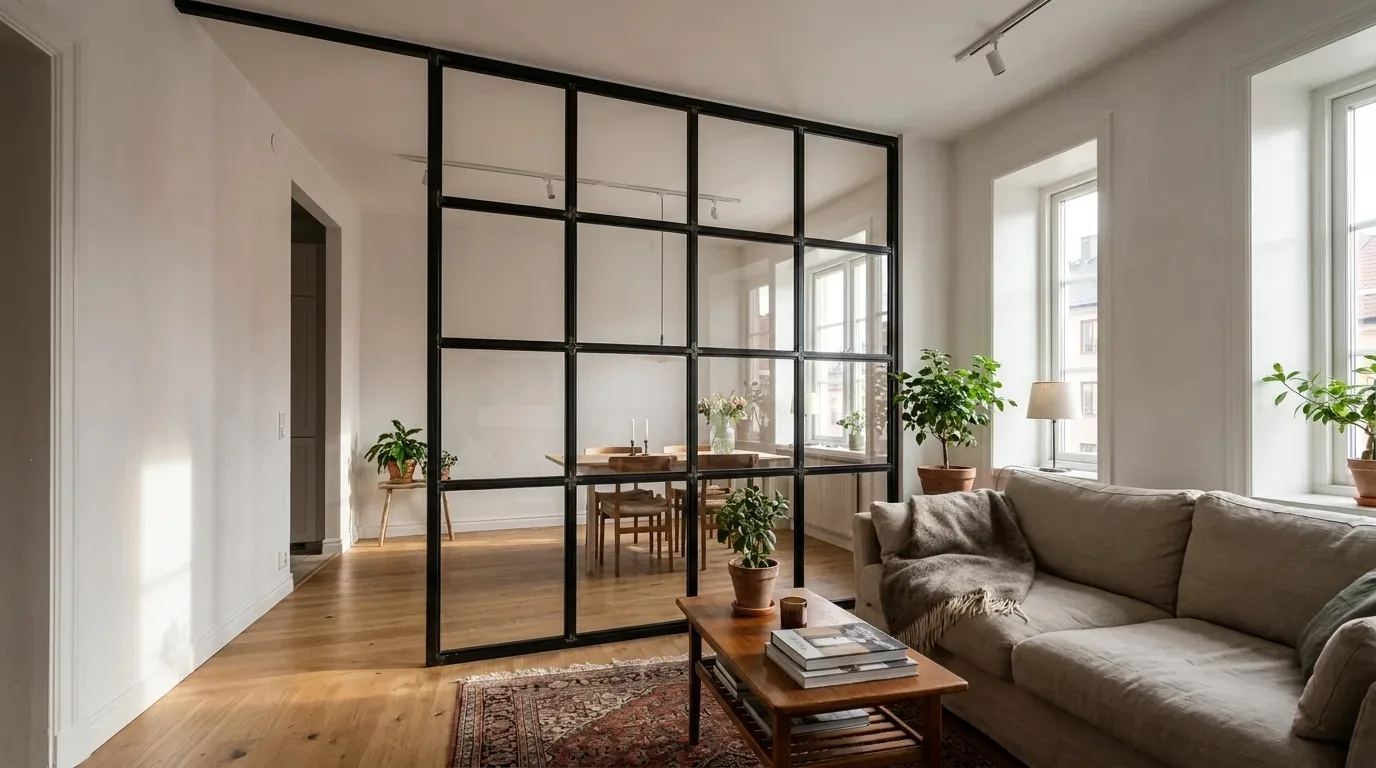

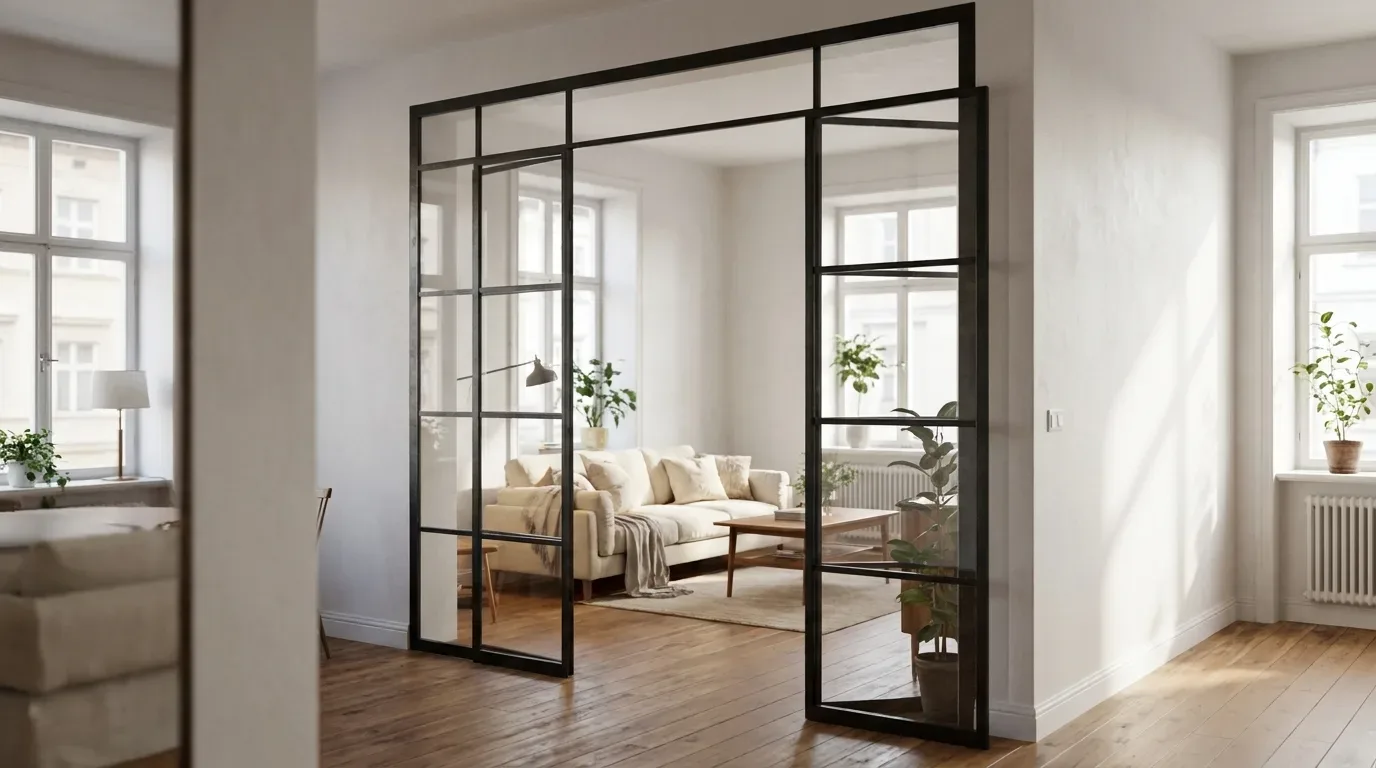

The simplest approach is a steel-and-glass partition with a walk-through opening that stays permanently open. Light, air and conversation pass freely between both zones; nothing ever swings or latches. This works well between a kitchen and dining area in a period conversion, or where a hallway flows into a living space and you want visual definition without ever closing anything off.

Partition plus hinged loft door

Most closable projects pair the fixed partition with a hinged loft door in the matching Crittall-style steel frame. The partition itself carries no hinges or handle - those belong to the door element, which is sized precisely for the opening you have planned. Together, the two read as one continuous glazed wall that shuts properly when you need quiet for a home office or an early night.

Loft door alone as the divider

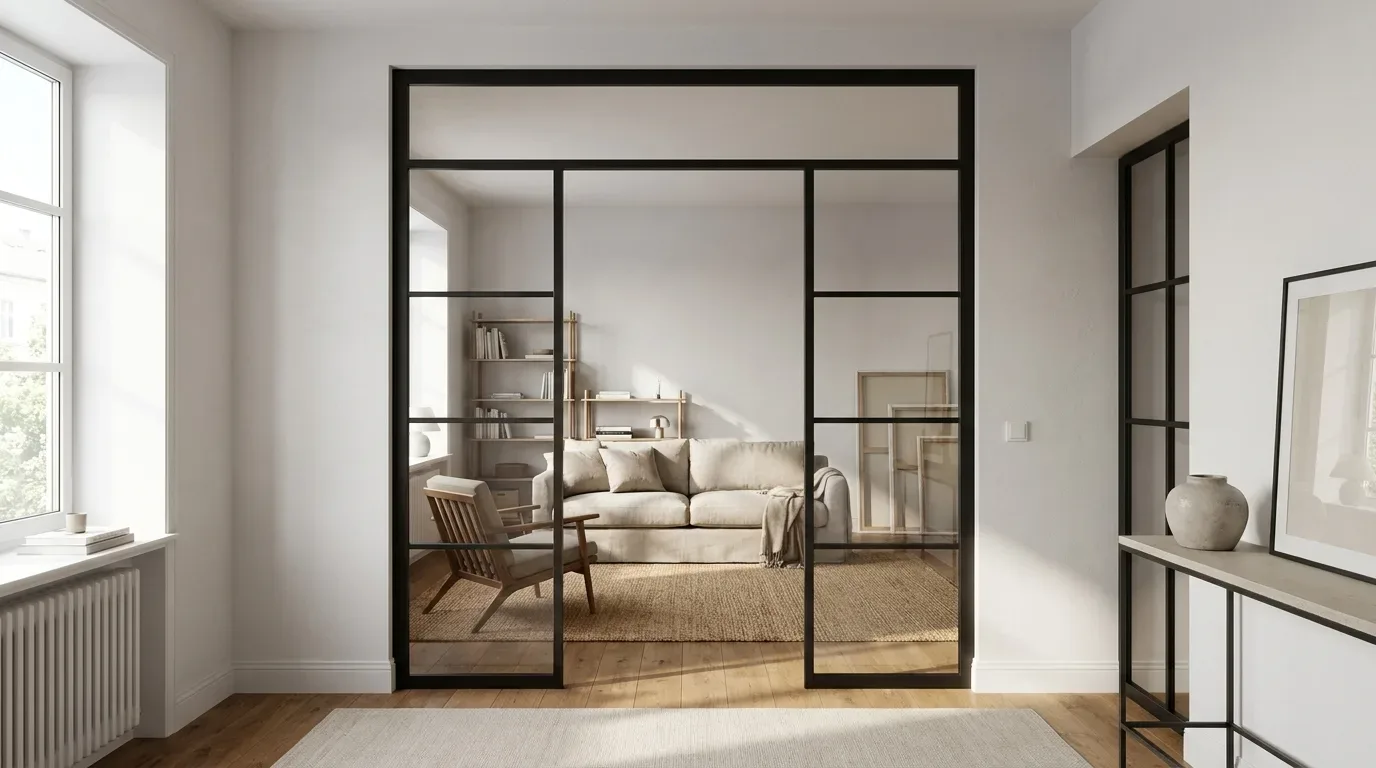

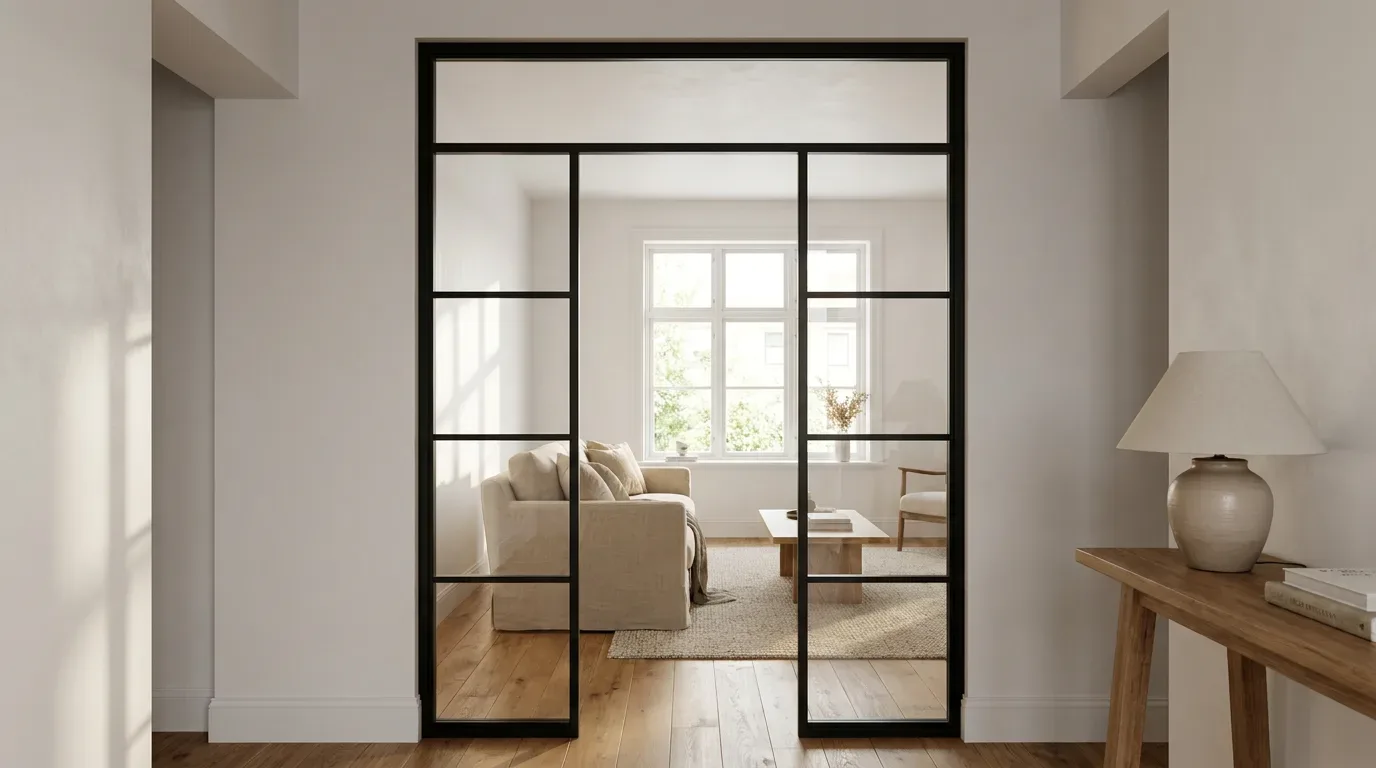

For narrower passages - a doorway in a Victorian terrace that measures around 80-90 cm, for instance - the door itself becomes the dividing element. A single or double leaf with optional side panels and a transom above can fill an opening where a full separate partition would add little. The result is lighter on the wall and simpler to plan.

How the walk-through opening works - and why it reduces your price

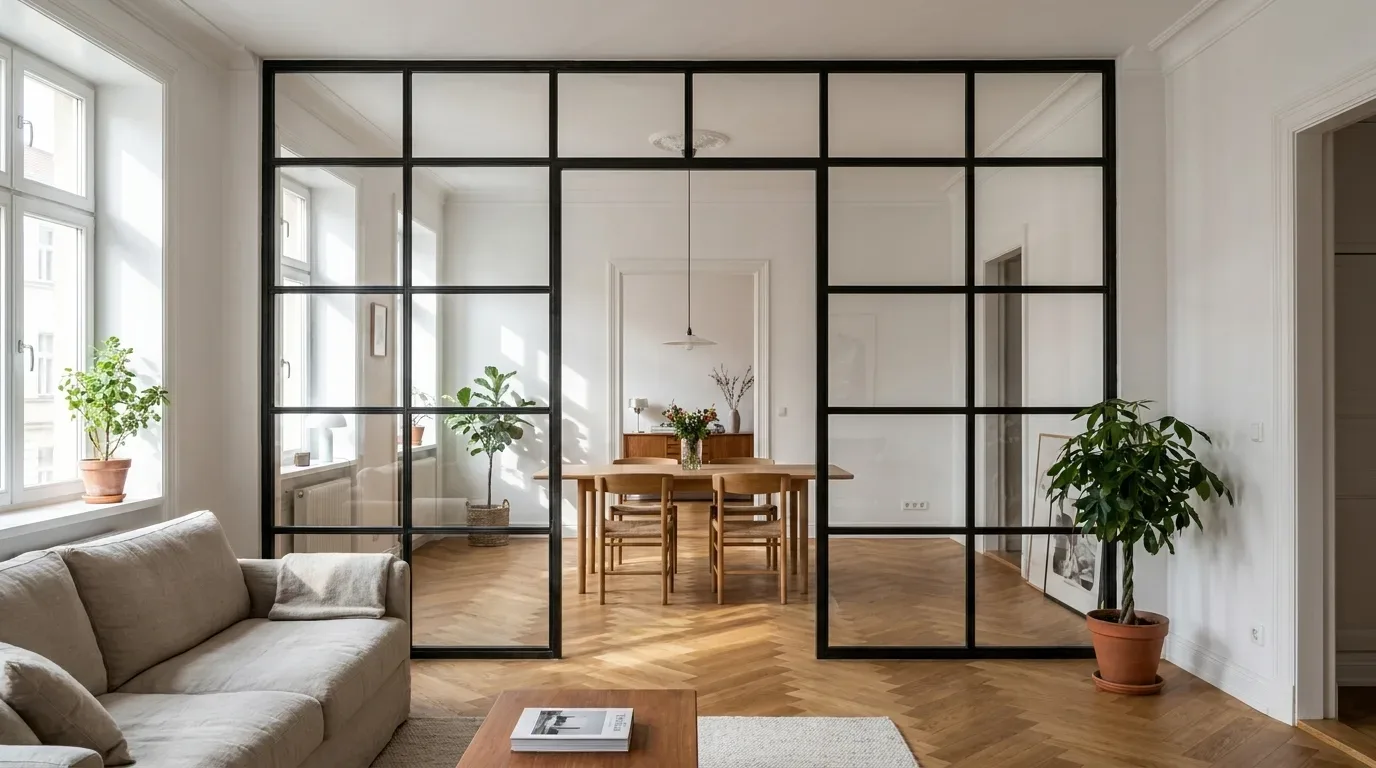

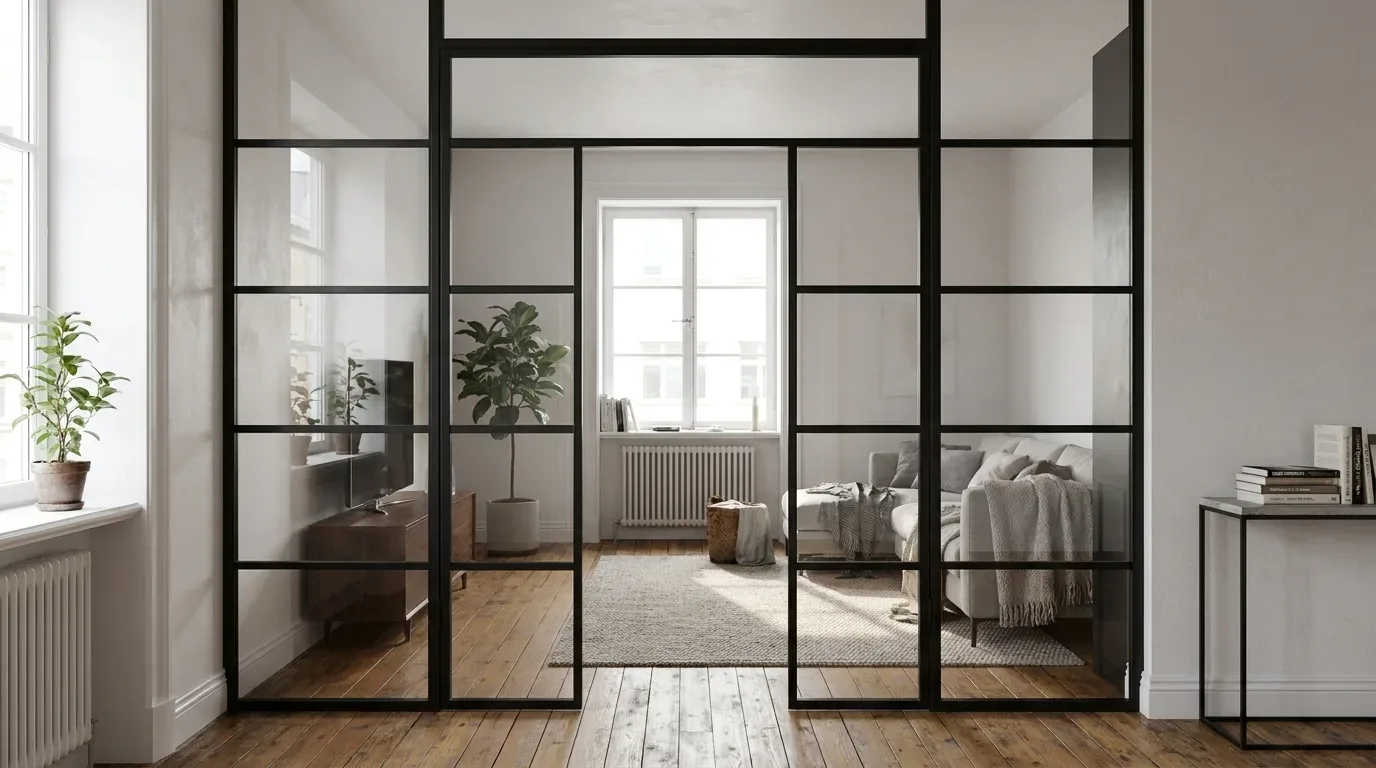

The walk-through opening is a planned gap inside the partition, set in the online configurator with its own width and height. Because it replaces glazed area rather than adding to it, it reduces the total price - which surprises most people who encounter it for the first time. You define the opening while configuring the partition itself: overall width and height of the divider first, then the width and height of the passage inside it. The powder-coated steel frame runs around both the partition and the opening; there is no frameless option. Everything around the gap is fixed. No leaf, no handle, no hinges - those belong to the door element if you choose to add one.

Setting the passage dimensions in the configurator

Openings in most projects land between 80 and 100 cm wide - broadly in line with a standard interior door in a British home. Taller passages work just as well; the frame follows the dimensions you enter, right up to the full height of the partition. The configurator accepts your exact desired dimensions directly, so there is no need to work back from a construction opening measurement.

Glass area drives cost - open passage reduces it

Glass is the largest cost component of the partition. Every square metre you replace with open passage takes real money off the total. Widen the opening in the configurator and the price updates in the same moment - you can compare a generous passage against a narrow one in under two minutes by testing the walk-through opening in the partition configurator. The pricing runs both ways: more glazed area means a higher total, less means lower. The Manufaktur X configurator calculates a fixed price in real time from width, height, opening size, glass type and bar count.

Pairing the partition with a hinged loft door - four decisions

The door in this combination is always a separately configured hinged loft door - single leaf, double leaf or pivot - sized for the partition's walk-through opening. Design continuity is the entire point: the steel bar pattern, RAL colour and glass type should run identically across both elements so the result reads as one wall rather than two products standing next to each other. Four decisions take you from open passage to a properly closing door.

1. Fix the opening size first. Door dimensions follow from the passage, not the other way round - configure the partition and plan its opening, then size the leaf accordingly.
2. Choose the leaf type. Single, double or pivot, depending on the opening width and how much clear floor space the swing may claim.
3. Set the hinge side, opening direction and magnetic catch. Hinge left or right based on how you approach the opening; the leaf should swing away from the main walking route. A magnetic catch holds it closed without a latch.
4. Match RAL colour, glass type and bar spacing across partition and door so the two elements disappear into a single glazed wall.

Single, double or pivot leaf

A single leaf handles openings up to roughly one standard door width and needs the least floor planning. Double leaves split a wider passage symmetrically, halving the swing arc on each side - useful in a knocked-through reception room where furniture is close. Pivot doors rotate on a vertical axis and suit generous openings treated as an architectural feature rather than a practical threshold.

Hinge side, opening direction and the magnetic catch

Choose the hinge side from the direction you most often approach the opening: the leaf should swing clear, not into your path. Three handle designs - slender bar, low-profile and crescent - give you the grip, all finished in the same RAL powder coating as the frame.

Why matching the bar pattern matters

Identical specifications are what create the illusion of a single wall. One RAL tone, one glass type, the same bar spacing. Even a closely similar grey reads as two separate products once they are hanging side by side - and in a period property where original architectural details are precise, an inconsistent grid is the first thing a design-literate eye notices.

Glass types, safety glass and bar patterns for a partition you walk through daily

Any partition next to an active doorway is glazed in safety glass - ESG (toughened) or VSG (laminated) - in one of five glass types applied uniformly across the whole divider. The options are clear, frosted, smoked, dark smoked and textured. One type covers the entire partition; there is no pane-by-pane mixing, no mirror glass and no decorative pattern options. Frosted glass keeps a home office visually private whilst still allowing daylight to cross the room; clear glass maintains the sense of openness in a smaller flat even when the door is shut - a consideration familiar to anyone who has lived in a converted Victorian or Edwardian property where natural light is precious.

Five glass types, one per partition

Choose by function before you choose by appearance. Privacy calls for frosted or textured glass; atmosphere for one of the two smoked tones; maximum light transmission for clear. Whichever you select runs through every pane of the divider without exception.

Toughened ESG versus laminated VSG in daily use

Both are safety glass and both comply with EN standards. Toughened ESG (per EN 12150) shatters into small blunt granules on impact. Laminated VSG (per EN ISO 12543) holds a broken pane on its interlayer film, so the glazing stays standing in place until it can be replaced. For a wall you brush past every day with a swinging door alongside it, that difference in breakage behaviour matters more than any visual distinction - for larger panes, VSG is the right choice.

Evenly distributed bar patterns

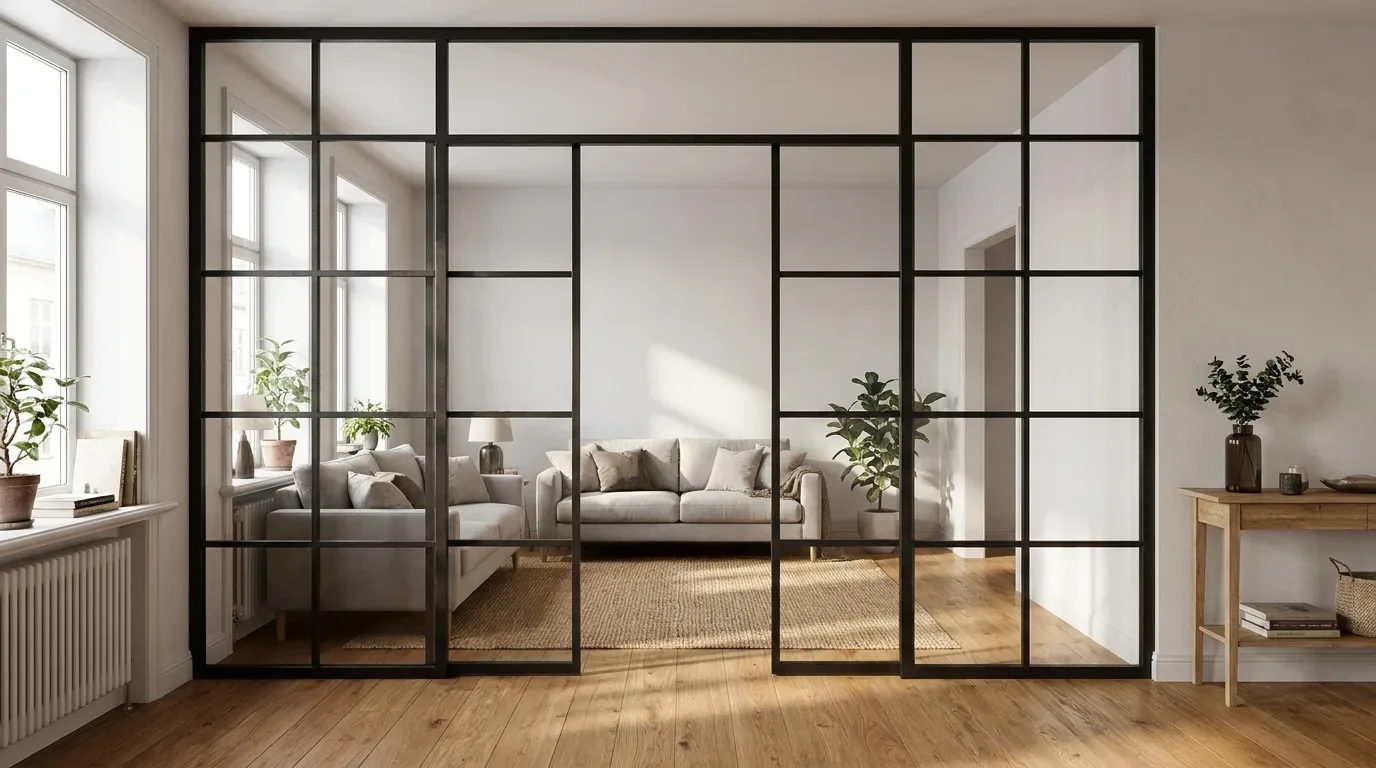

Horizontal and vertical bars are always spaced evenly across the glazing - the configurator does not allow an asymmetric grid or freely sized individual pane fields. That constraint keeps the geometry calm and ensures the partition and door bar patterns line up cleanly when both elements are installed together.

For partitions in loft and open-plan spaces, I specify safety glass with a bar pattern - it gives visual lightness, provides reassurance when people pass through, and preserves the industrial character my clients are looking for.

Lukas Brandt
Loft Renovation Specialist

Measuring for a partition with door in a British home

Measure width and height at several points and configure from the smallest value - walls in Victorian terraces, Edwardian semis and 1930s semi-detacheds rarely run perfectly straight, and the partition must fit the tightest spot it will encounter. This is the single measuring rule that prevents almost every fitting problem. Our production data tells you why it exists: in around 70% of partition and loft door projects, customers measure a different figure on the left and right side of the same opening. Plaster bows, floorboards slope a few millimetres across a metre, and corners drift out of square over a century. Steel does none of those things, so the steel has to be sized for the wall's tightest reality. The most common reason a custom partition does not fit is a measurement error, not a production fault. If you would rather hand the whole step over, installation partners can handle the on-site measuring and fitting.

Three widths, three heights - take the smallest of each

Take the width at three heights (top, middle, bottom) and the height at three positions (left, centre, right). The smallest figure from each set is the value you enter in the configurator. In a period property, do not be surprised if the top and bottom width differ by 10-15 mm - that is entirely normal in plastered brickwork.

Clearance for the door leaf

Keep roughly 5 mm mounting clearance per side for the door element within your measured opening. It is a small number and it is the one most often left off the list.

Skirting boards, sockets and radiators

Anything that protrudes into the opening plane reduces it: deep Victorian skirting at floor level, socket housings partway up the wall, radiator valves at the edge. Measure to the obstacle, not past it. In many period properties, original skirting boards run 15-20 cm high and project 2-3 cm from the wall face - worth checking before you finalise dimensions.

• Width at three heights - record the smallest figure
• Height at three positions - record the smallest figure
• Roughly 5 mm clearance per side reserved for the hinged door
• Skirting boards, sockets, radiators and floor transitions checked within the opening plane
• Full door swing arc confirmed clear on the floor

The planning mistakes that cost you the most

The problems that derail a steel-and-glass room divider with door happen at the planning stage, not in production: drawing dimensions used instead of on-site measurements, a forgotten door swing, and a passage sized too narrow for daily life. Our support team's experience confirms the pattern - the most common complaint we handle is a mis-measured opening, not a production fault. Three recurring scenarios show how it happens.

Drawing dimensions instead of on-site dimensions

The architectural drawing says 2,500 mm; the finished, plastered, skirting-boarded reality measures 30 mm less at its tightest point. Result: a made-to-measure partition that is measurably too wide for the opening it was built for, with the cost of rework or reordering falling on you. The fix takes ten minutes: measure the finished wall with a tape measure, never the floor plan with a ruler.

Forgetting the door swing arc

A 90 cm leaf sweeps a 90 cm arc across the floor every time it opens. A sideboard pushed against the wall, a column radiator just inside the room, a desk chair rolled back from the table - any of these inside that arc means the door lives permanently half-open, and the closable divider you ordered behaves exactly like an open one. Tape the full arc on the floor before you finalise the layout, not after delivery.

A passage too narrow for real use

An opening planned at bare body-width feels tight every single day, and fails completely on the one occasion it really matters: moving furniture. A sofa that came through a standard 762 mm internal door - the most common width in British new-build and period properties alike - will not pass a 65 cm gap. Start from a standard interior door width, then remember that the steel frame and roughly 5 mm clearance per side sit inside your measured opening, not outside it.

Price, lead time and ordering from the UK

The price of a steel-and-glass room divider with door is driven by glazed area, bar count, glass type and the door element - shown as a live fixed price in the configurator, with manufacture in the EU taking 5-6 weeks. Because Manufaktur X sells direct from the manufacturer, the figure you see whilst configuring is the figure you pay. No showroom margin, no "bespoke surcharge" appearing at checkout. In a market where most made-to-measure joinery still means "request a quote and wait a week", a live-priced configurator is a genuine difference. Delivery to the UK includes all customs and duties, so there are no surprise costs after the border. Room dividers at Manufaktur X start from £1,900.

What moves the price up or down

More glazed area and more bars raise the total; non-clear glass adds a flat step; the walk-through opening reduces it by replacing glass area with open passage. The door element is configured and priced separately on top. Every parameter change reprices instantly - unlike a trip to a John Lewis Home Design appointment, where a custom quotation arrives days later. For larger projects, instalments are available at checkout.

5-6 weeks from order to delivery

Both elements are manufactured in the EU in 5-6 weeks, with shipping costs and lead times shown transparently before you confirm your order. The pricing is fixed, not estimated - backed by over 30 years of furniture-making experience rather than a call-centre approximation.

1. Configure partition and door online - dimensions, glass type, bar pattern, RAL colour - with the fixed price updating as you adjust each parameter.
2. Order both elements together so RAL tone, glass type and bar spacing match from the outset.
3. Production runs in the EU workshop over 5-6 weeks.
4. Delivery and installation - fit it yourself using the supplied instructions, or arrange an installation partner for the on-site work.
