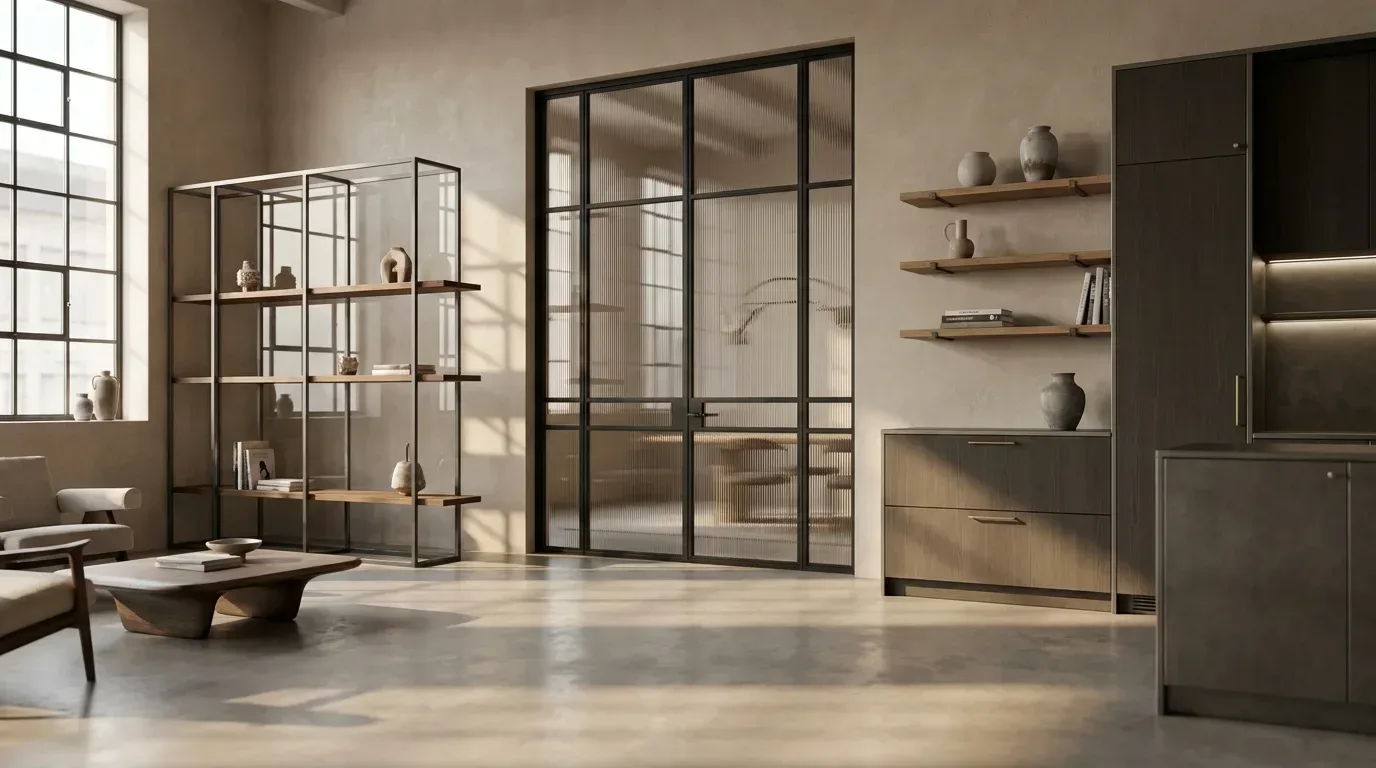

Combining Colours and Materials: How to Match Steel Frame RAL, Timber and Glass

Combining Colours and Materials: How to Match Steel Frame RAL, Timber and Glass

Getting steel, solid timber and glass to work together in one room does not require an interior design degree - but it does require a clear understanding of how RAL powder coating colours interact with different wood species, how surface finishes behave over time, and where the most common planning mistakes tend to occur. This guide takes you from the first colour decision on screen all the way through to a fitted, made-to-measure piece that actually looks the way you imagined.

Why the Relationship Between RAL Colour, Timber and Glass Defines the Whole Room

Consider a steel frame in RAL 9005 (jet black) placed next to oiled oak versus the same frame next to lacquered beech. The frame colour is identical - yet the result looks entirely different. Timber surfaces scatter light diffusely, which changes how the adjacent metal reads. In our workshop, we consistently see customers approve a colour combination on screen and then feel surprised on delivery, because monitor light cannot replicate material depth. Our advice: always assess timber samples and powder coating samples together, under the actual lighting conditions of your room.

When colours and materials are properly coordinated, the result is a room that simply feels right. That effect is not purely subjective - it follows predictable principles involving surface texture, light reflectance and colour temperature, all of which can be planned for.

The 60-30-10 Rule and How It Applies to Custom Furniture

Interior designers often use the 60-30-10 rule as a practical starting point: 60% dominant colour (walls and floor), 30% secondary colour (main furniture surfaces and timber), 10% accent colour (steel frames, handles, lighting). The logic behind the split is straightforward - the eye needs a clear hierarchy. When too many surfaces compete at the same visual weight, the room feels restless rather than resolved.

Four underlying principles of colour harmony translate directly to material choices:

• Monochromatic schemes: Different brightness levels of a single colour - for example, RAL 7016 (anthracite grey) on the steel frame, pale grey on the walls, dark grey on the floor.
• Analogous colours: Colours sitting next to each other on the colour wheel - warm white walls combined with oiled ash and a steel frame in RAL 1019 (grey beige).
• Complementary colours: Colours opposite each other on the colour wheel - a frame in RAL 6005 (moss green) alongside an oak surface with a warm reddish-brown patina.
• Triadic schemes: Three evenly spaced colours - rarely practical for furniture; better suited to textile accents and accessories.

RAL Colours for Powder-Coated Steel Frames: Which Tones Work With Which Timber

Powder-coated steel is the visual bridge between timber and glass. The RAL colour you choose is therefore a structural design decision, not a finishing detail. Based on production experience across a wide range of residential projects - from Victorian terrace conversions to open-plan new-builds - these combinations have proven consistently successful:

The table above offers starting points, not rules. In our workshop, some of the most striking results come from less obvious pairings - RAL 3009 (oxide red) with smoked oak, for instance - when the wider room context supports it. The key is always the whole room, not the combination in isolation.

Oak, Beech and Ash: Understanding the Three Timber Species

Manufaktur X works exclusively with oak, beech and ash - three species with quite different characters. Anyone wanting to combine colours and materials effectively needs to understand how these timbers respond to light, staining and the materials placed alongside them.

There is a practical distinction worth understanding between the two main surface treatments. Oiled surfaces bring out the natural grain and warmth of the timber - RAL colours placed alongside tend to read slightly cooler by comparison. Lacquered surfaces create a smoother, more uniform face that reduces the perceived contrast with a powder-coated steel frame, because both surfaces share a similar visual finish.

Day-to-day, the difference matters considerably. An oiled surface - say, an oiled oak dining table - can be spot-treated when scratched; in most cases a small application of wood oil makes the mark effectively invisible. Lacquer offers stronger protection against moisture and staining, but any damage generally requires a full-surface refinish rather than a local repair.

Solid Timber or Veneer: What Manufaktur X Produces and When

Table tops and bench tops - across the made-to-measure dining table, made-to-measure coffee table and made-to-measure bench - are available in two constructions: solid glued board (genuine solid timber from glued planks, the default option) or veneer (a seamless real-wood surface over a core board). Both are genuine wood - the difference lies in appearance, feel and how each responds to changes in humidity.

Shelves are a different matter. Both the made-to-measure large shelf and the made-to-measure pipe shelf are produced exclusively in solid timber - no veneer, no MDF, no chipboard.

Glass as the Third Material: ESG Versus VSG

Glass features in Manufaktur X products only on the loft door and the room divider. For those pieces, the choice between ESG and VSG is a safety and performance decision as much as an aesthetic one.

• ESG (toughened safety glass): Shatters into small, blunt fragments rather than sharp shards - significantly safer than standard float glass. This is the standard specification for most loft door applications. It offers clear visibility with minimal colour cast.
• VSG (laminated safety glass): Two panes bonded with an interlayer film - on breakage, the glass stays in place and fragments do not fall free. Worth specifying where there is high footfall, young children in the household, or where additional acoustic performance is a priority. VSG provides measurably better acoustic damping than ESG of equivalent thickness - a meaningful advantage in many period conversion projects where adjoining rooms carry sound easily.

From a colour and material perspective, it also matters which glass type you choose. Clear glass allows colour and light to pass through unfiltered, so a strong colour contrast between two adjoining rooms will be fully visible. Frosted or satin glass scatters light and softens those colour transitions - a particularly useful option in older properties where different rooms may have been decorated in quite distinct palettes over the years.

How Many Materials Can One Room Carry?

Successful material combinations depend on balanced contrast:

• Rough surfaces alongside smooth ones
• Matt finishes alongside reflective elements
• Warm materials alongside cooler ones

Three to four primary materials per room is a reliable upper limit. Beyond that, the eye loses its sense of hierarchy - not because any individual combination is wrong, but because there is no longer a clear visual anchor. In practice: if steel, oak and exposed brick are already three strong characters in a room, the fourth material (textiles, stone, glass) should consciously play a supporting role.

This is particularly relevant in the Victorian and Edwardian conversions that make up a large share of British urban housing stock. These rooms often come with strong existing character - original floorboards, original coving, brick chimney breasts - which already counts as one or two of your material slots before any furniture is introduced.

How Lighting Changes Everything

North-facing rooms in British homes receive cooler, bluer light for most of the day. RAL colours with grey undertones - RAL 7016, RAL 9005 - read even cooler in these conditions, which can be a deliberate choice or an unpleasant surprise depending on your intentions. South-facing rooms receive warmer, more golden light that enhances the natural warmth of oak and beech, while making cooler grey RAL tones appear more animated.

Artificial light shifts perceptions significantly. Warm white LED (below 3,000 Kelvin) brings out timber warmth and softens the edge of black steel frames. Neutral white (around 4,000 Kelvin) shows material colours most accurately. Daylight white (above 5,000 Kelvin) tends to make timber look cooler and steel frames read with harder contrast.

A practical point from our production and consultation experience: always assess RAL colour samples and timber samples under the actual lighting in your room - not in a showroom or a builder's merchant under fluorescent strip lights. What reads as harmonious under cool white commercial lighting can look quite different under the warm LED pendants of a dining room.

Planning Across Rooms: Colour Transitions in Open-Plan Spaces

Open-plan layouts - increasingly common in both converted period properties and modern new-builds - demand that you think beyond a single room. From one vantage point, you may be looking across three spaces simultaneously. A consistent material thread works more powerfully than a repeated wall colour: a powder-coated steel frame in RAL 9005 appearing in the loft door, on the large shelf and in the dining table base connects spaces at a material level that paint alone cannot achieve.

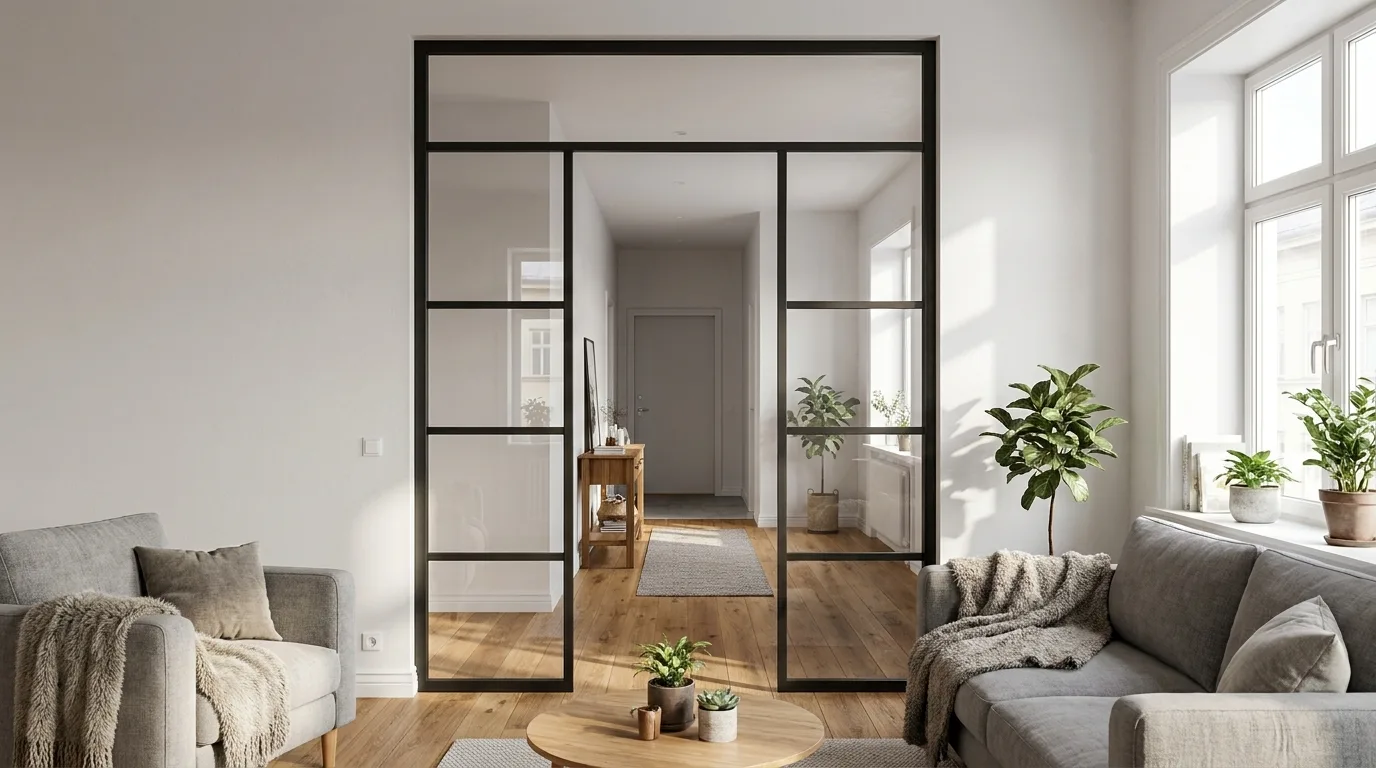

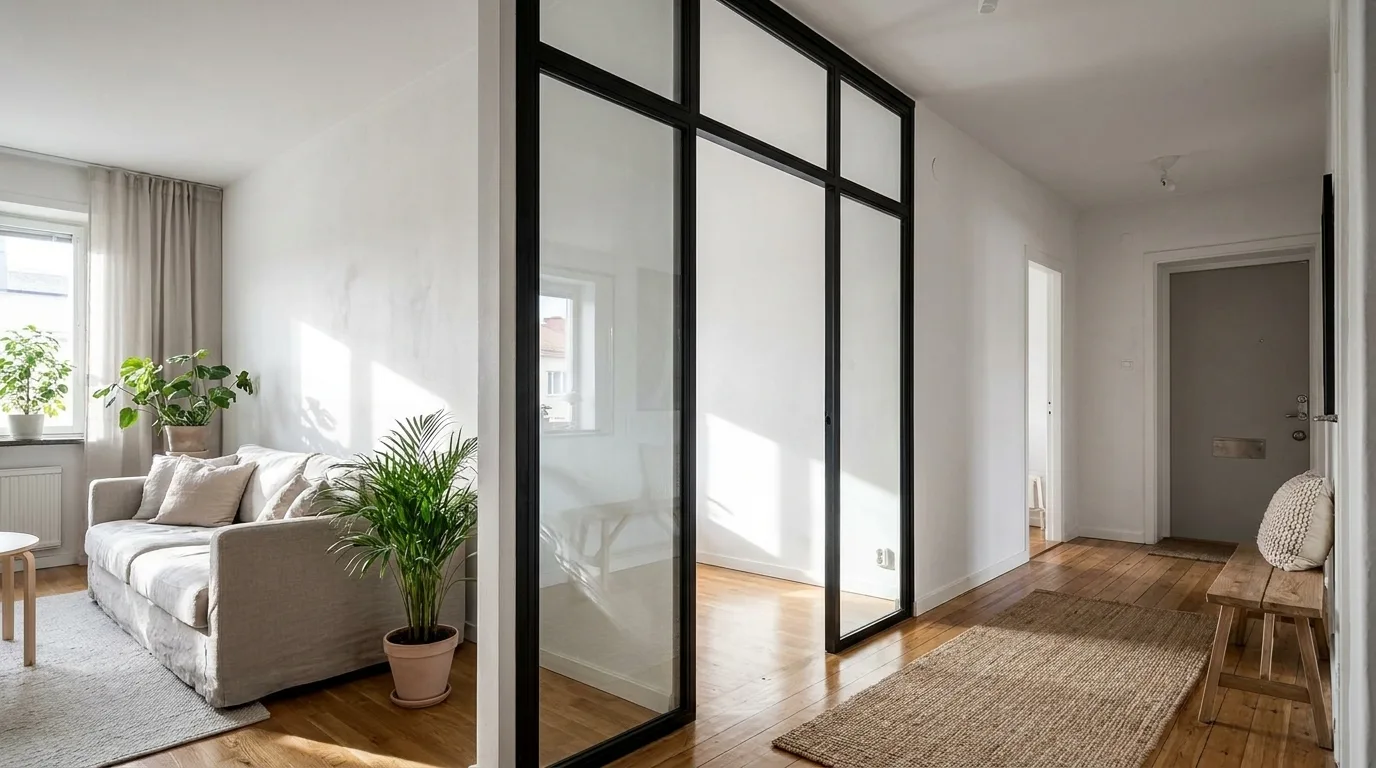

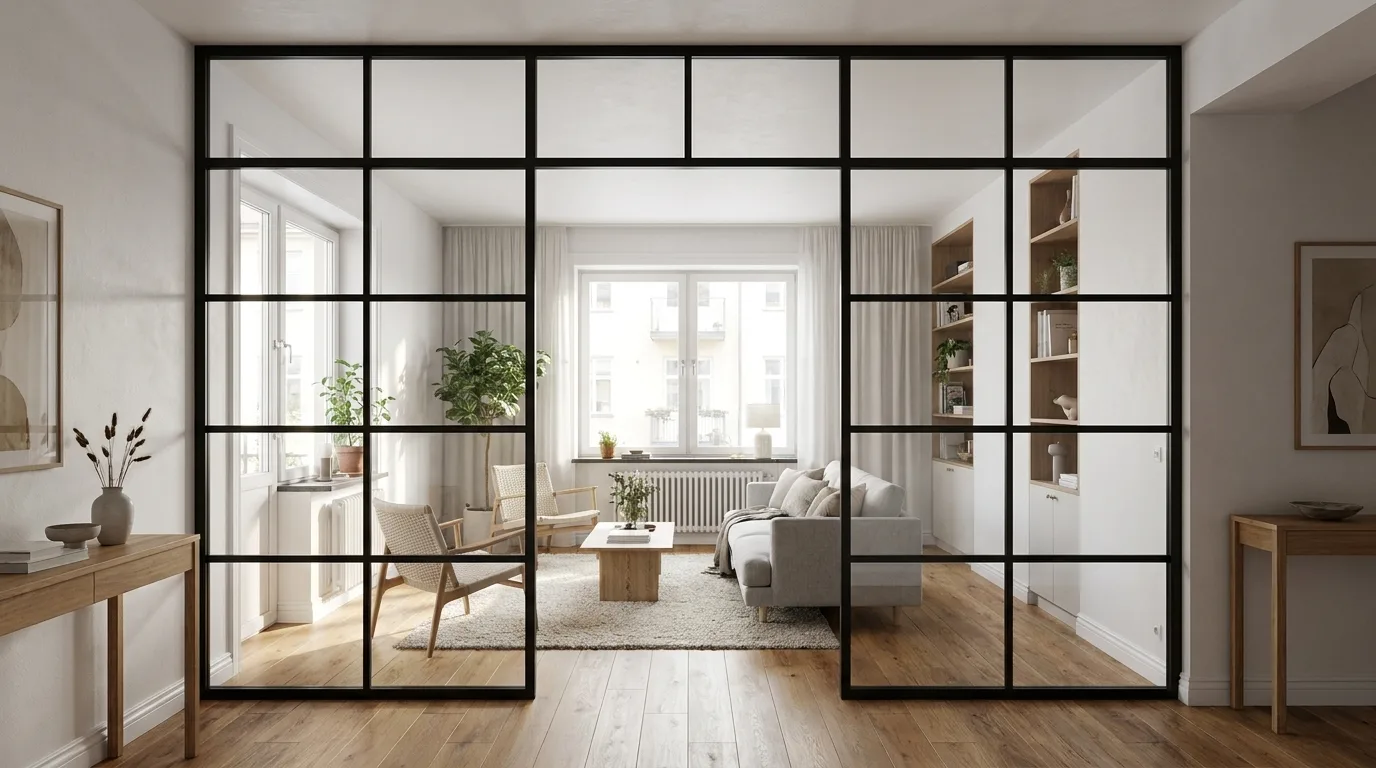

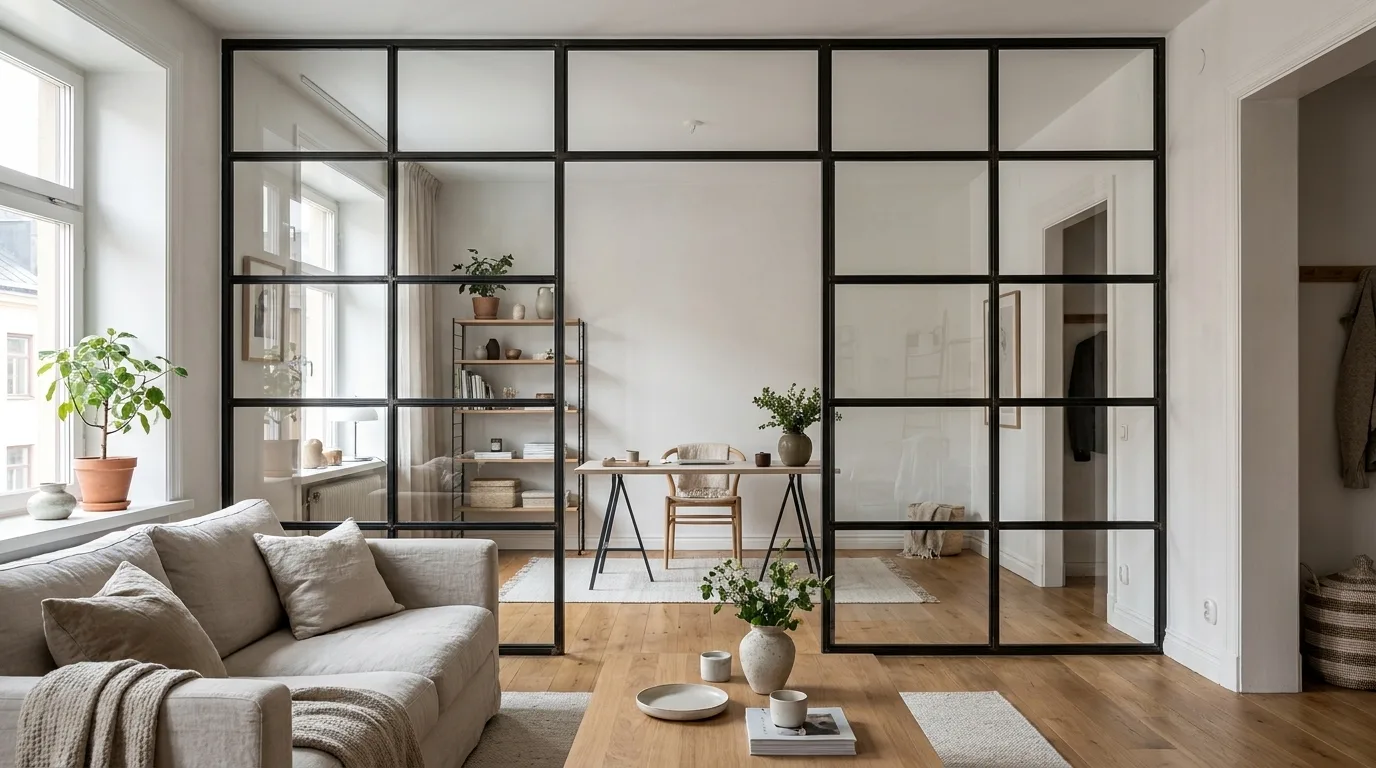

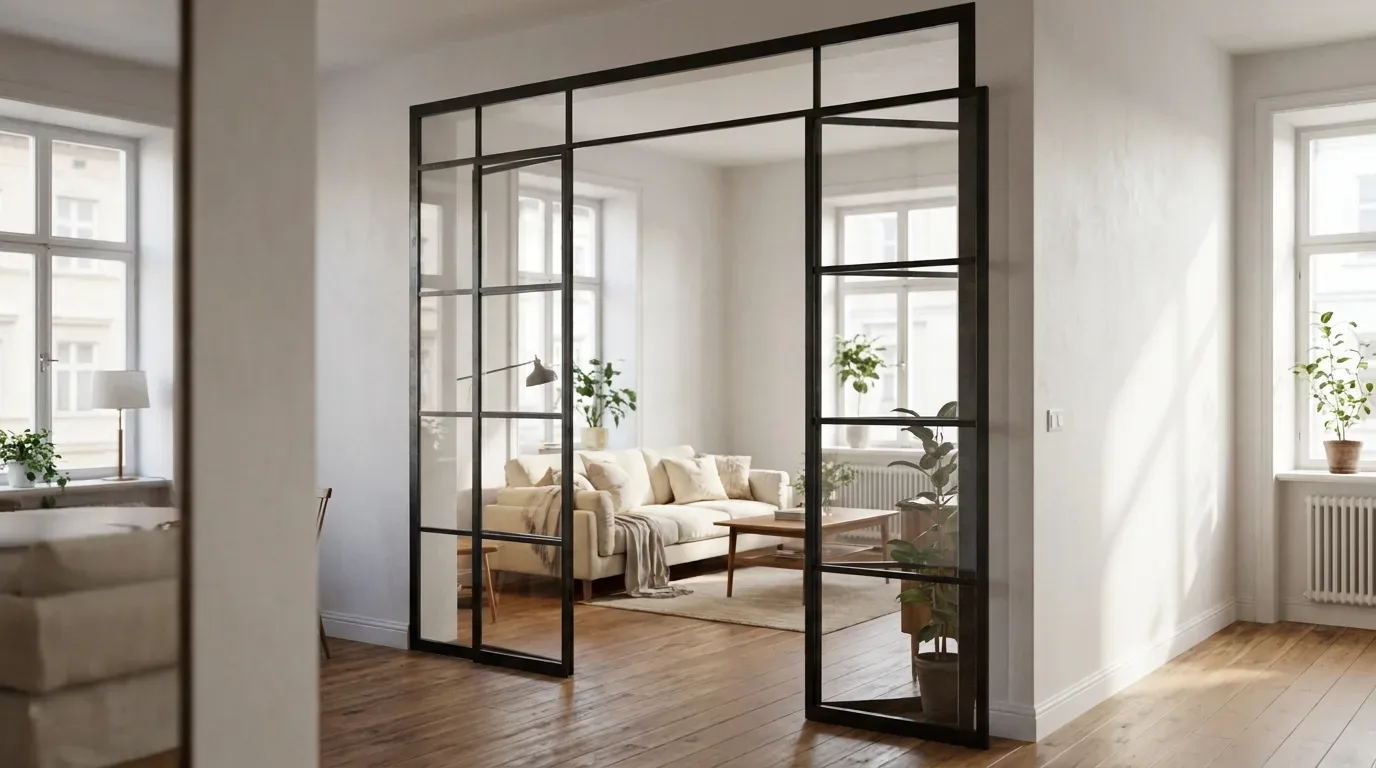

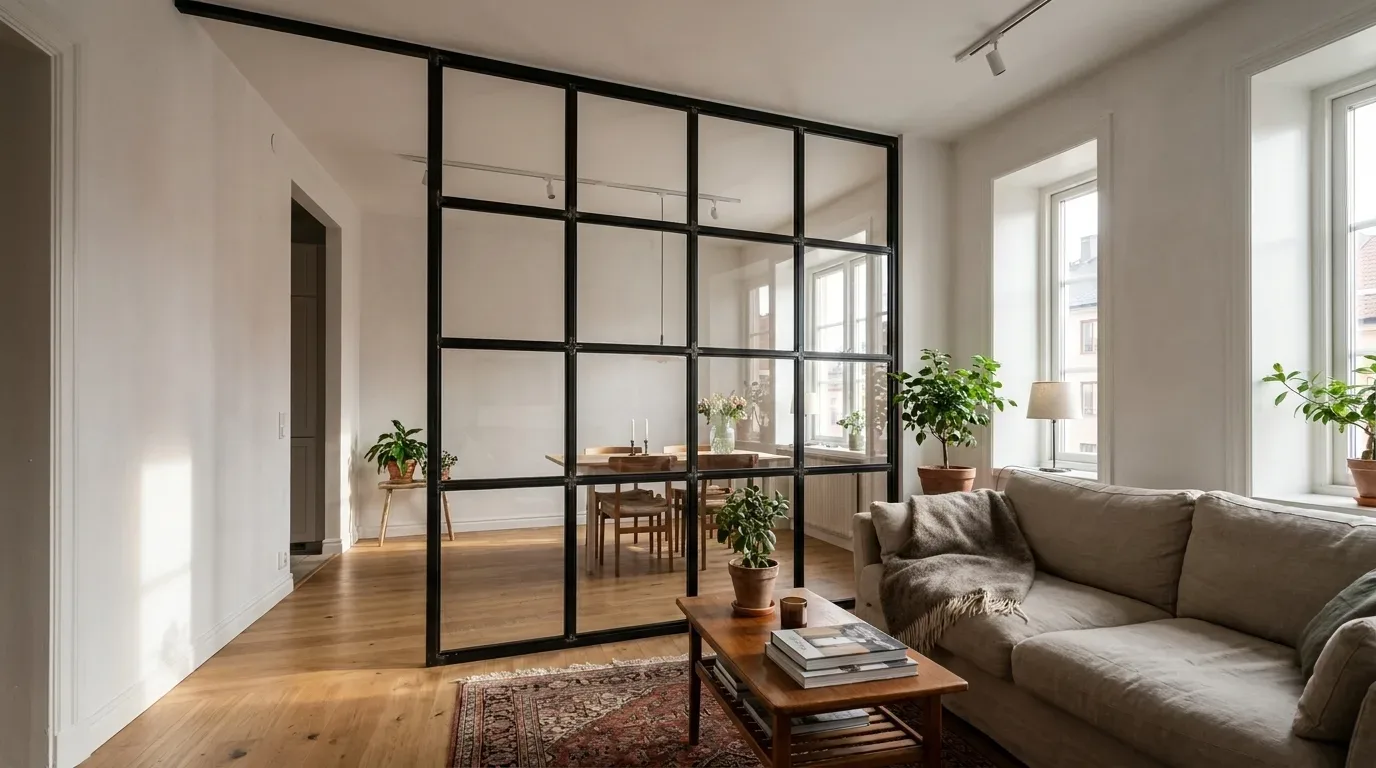

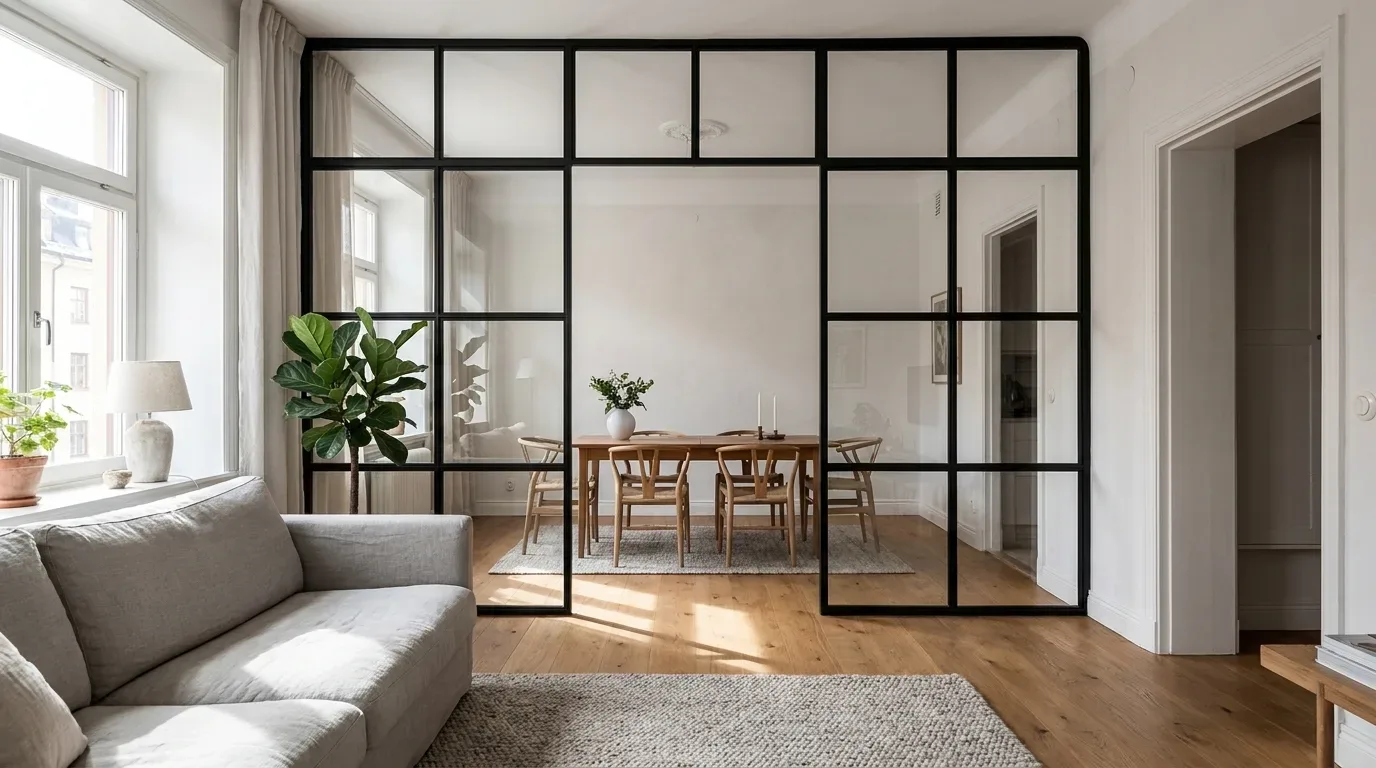

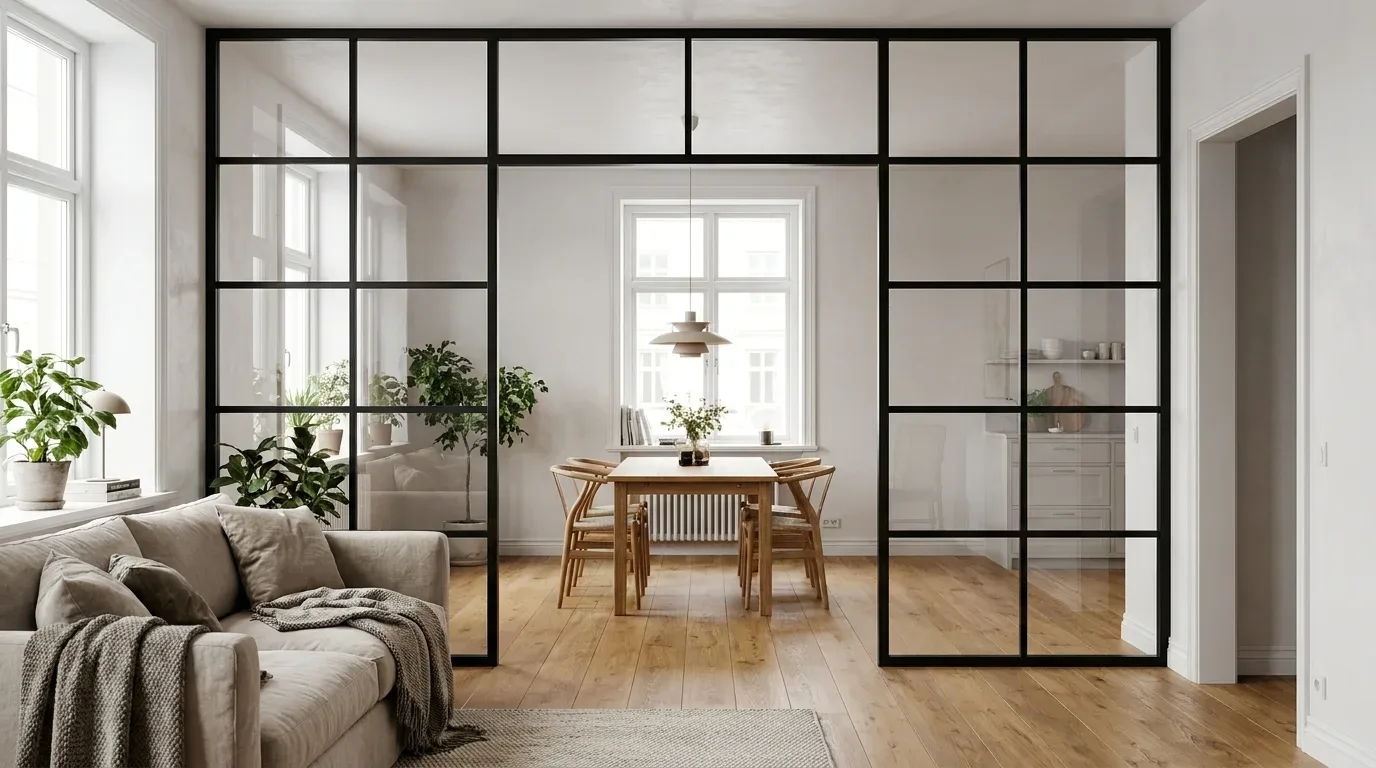

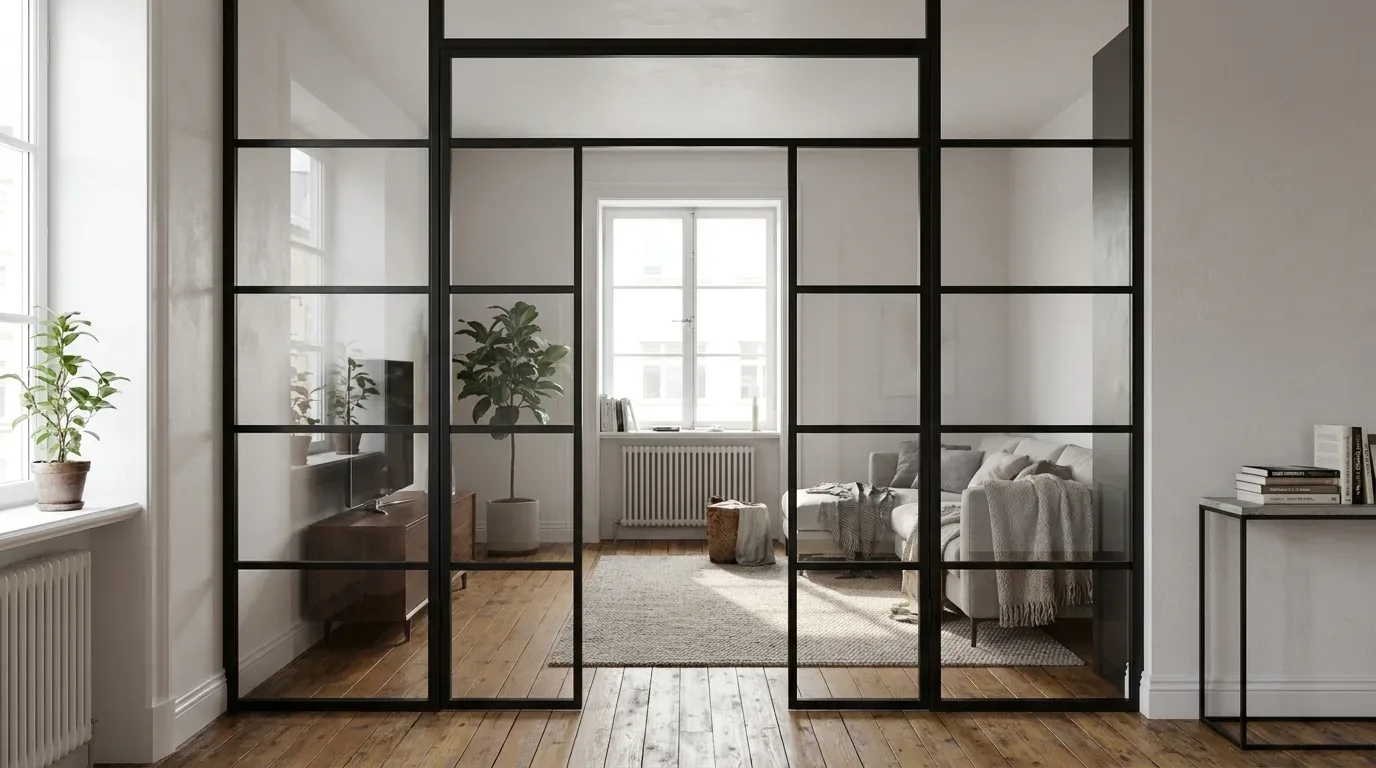

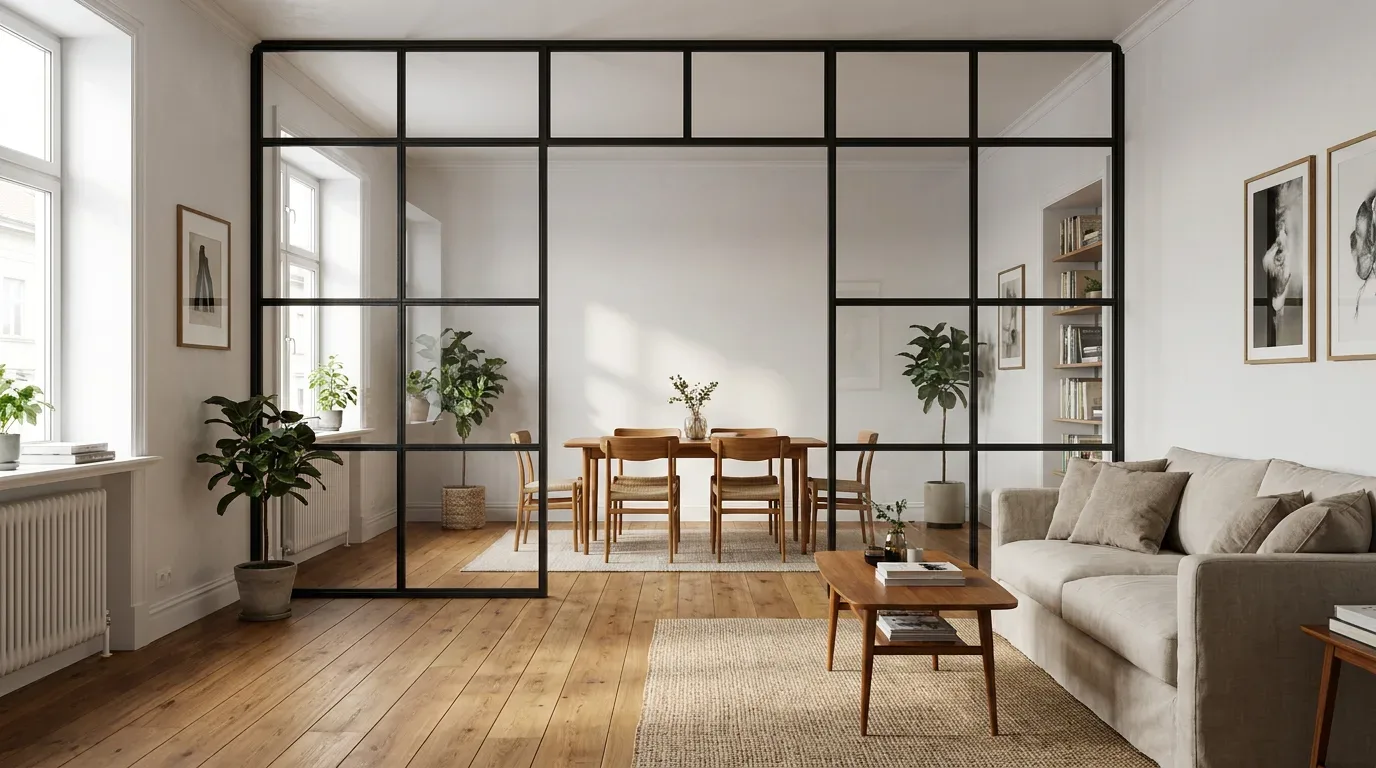

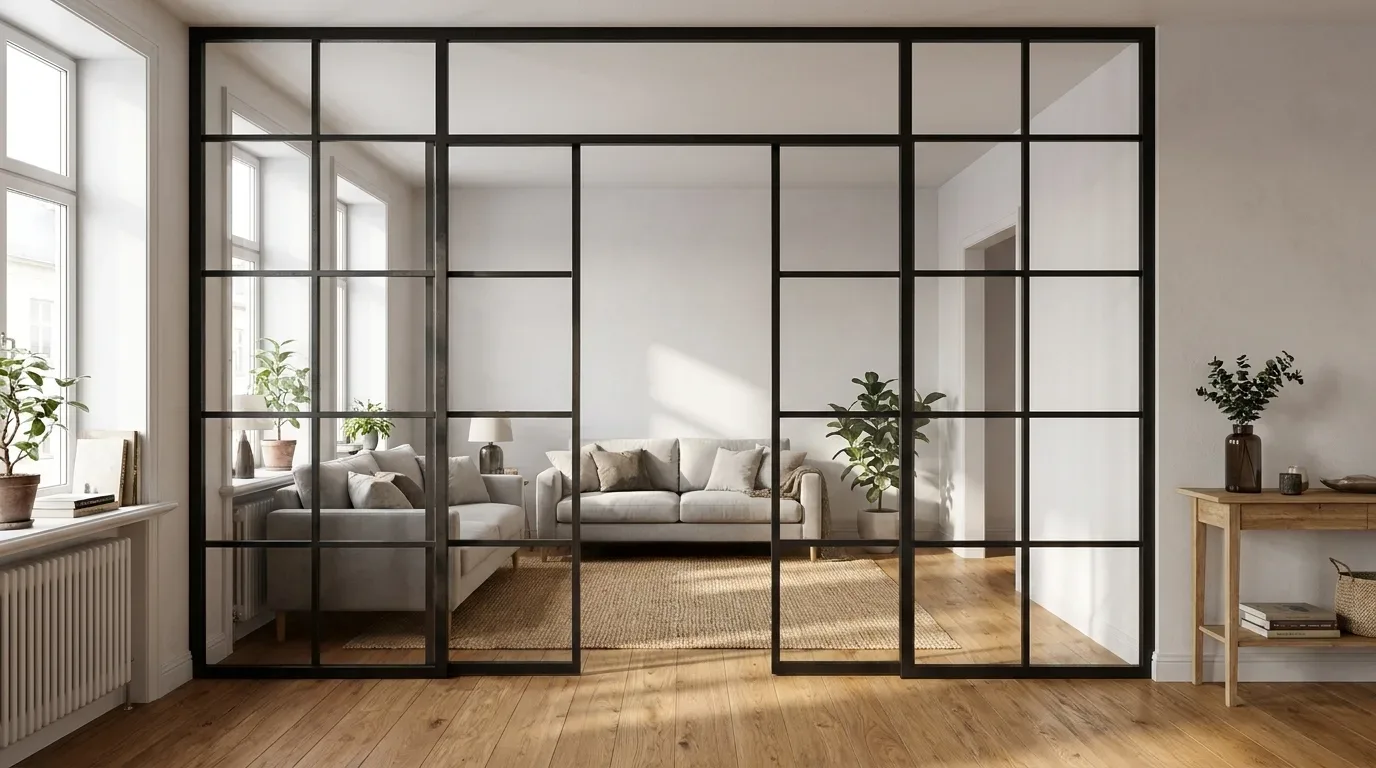

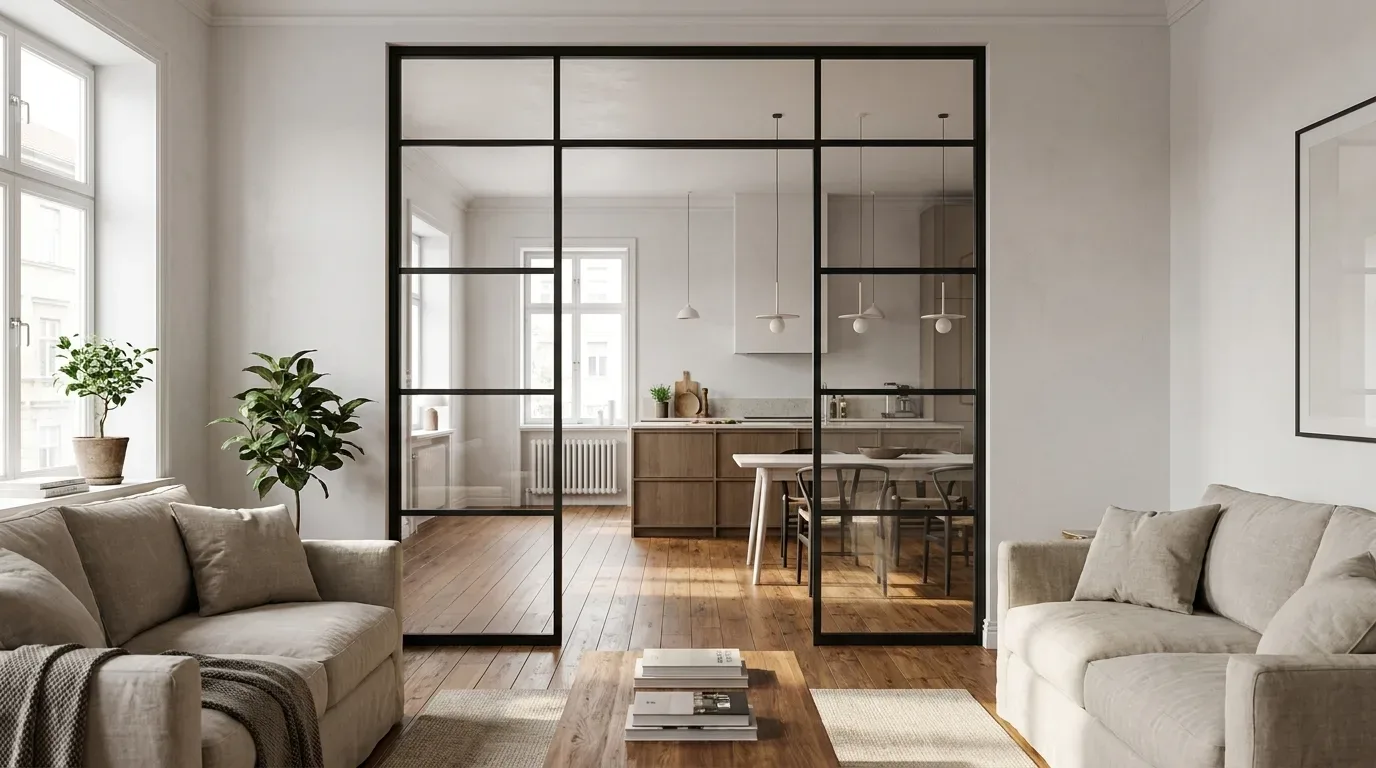

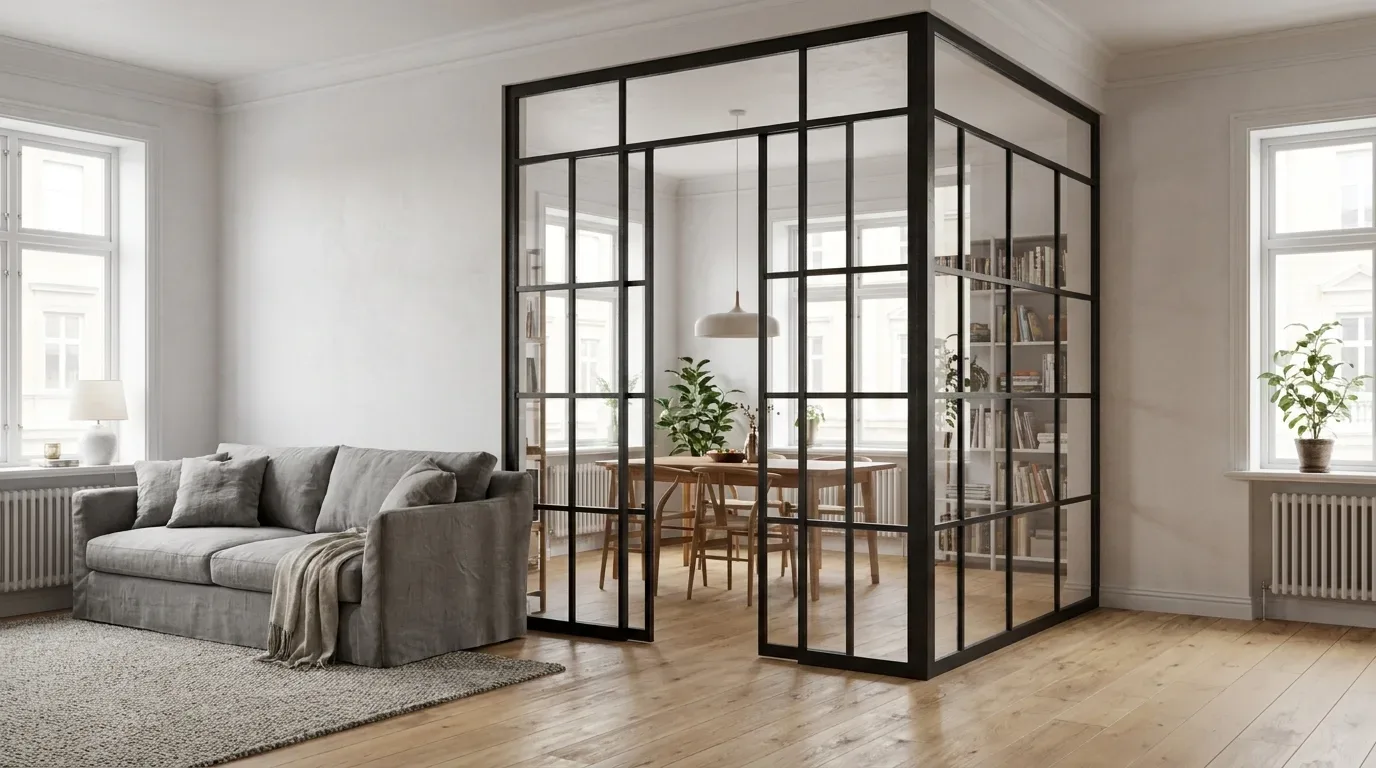

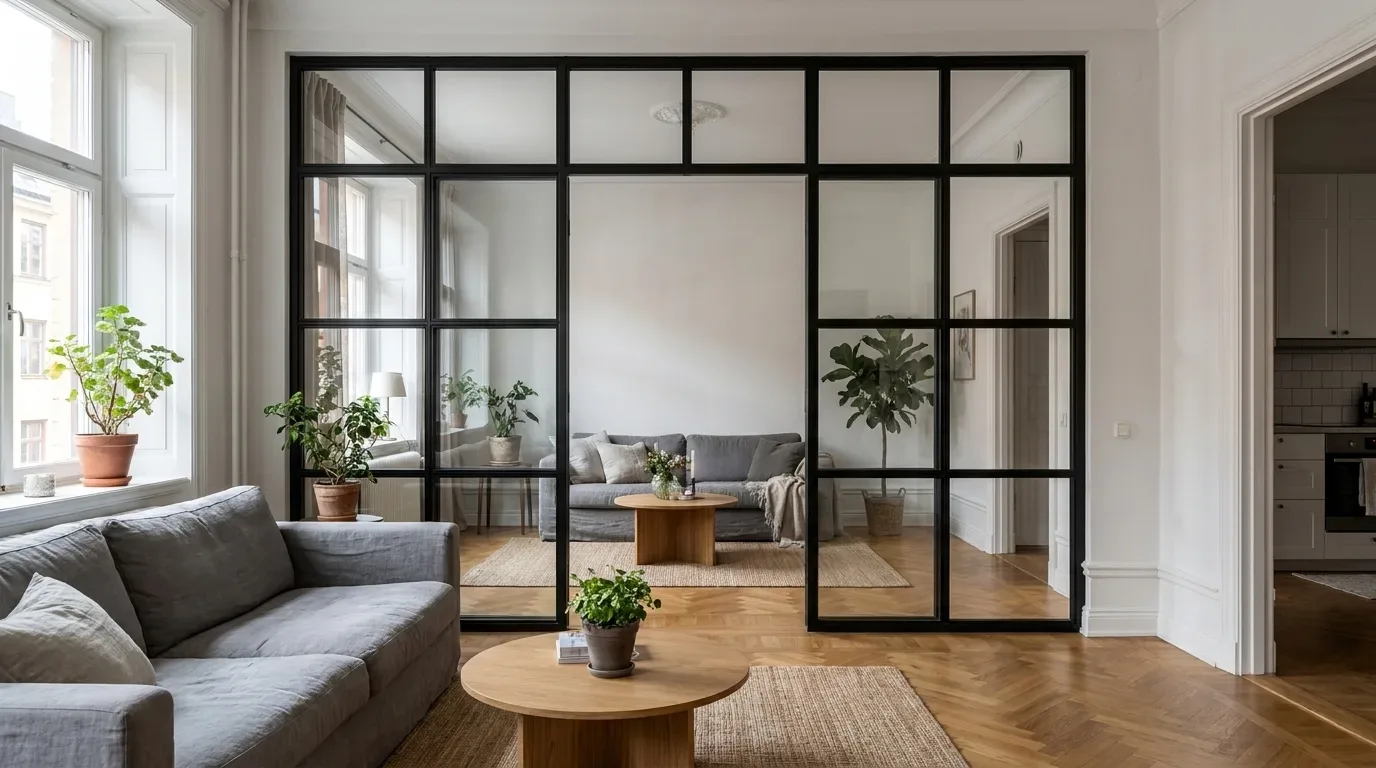

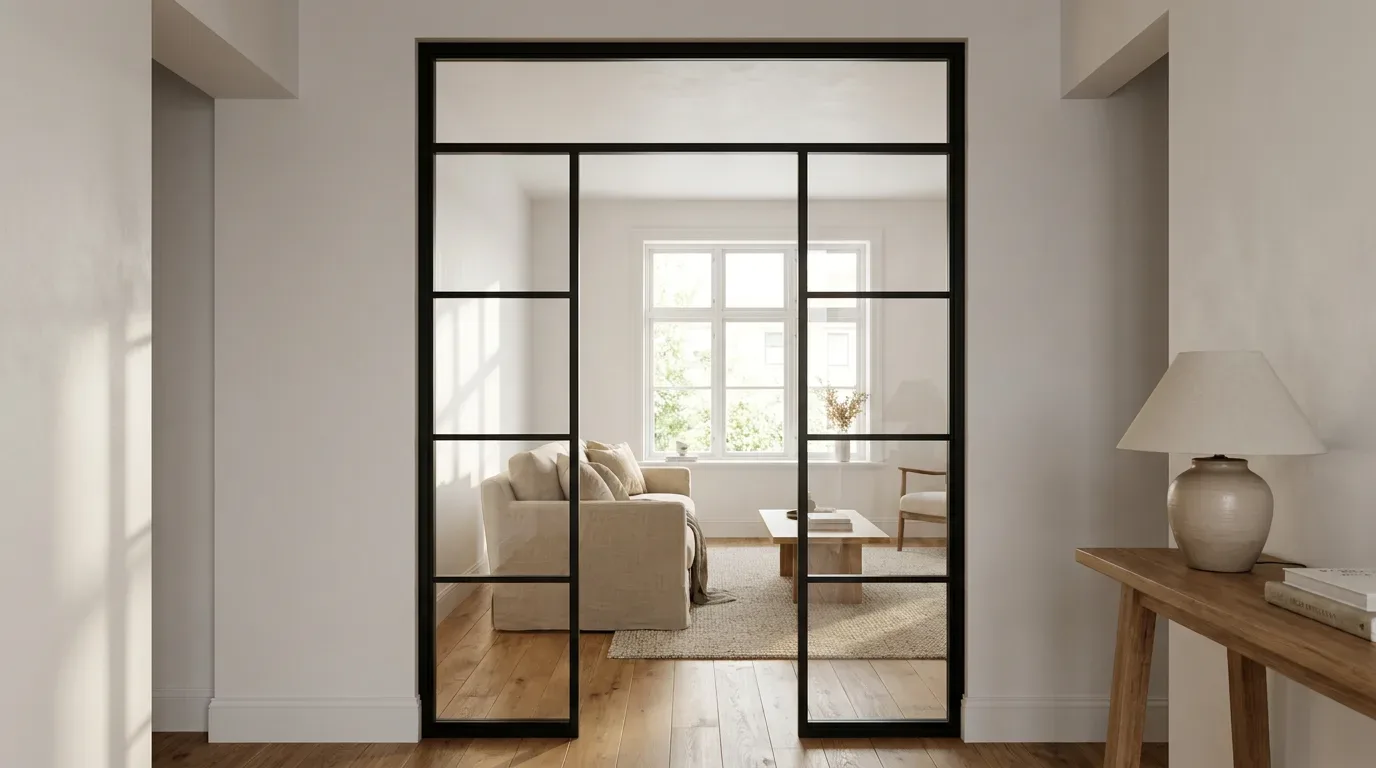

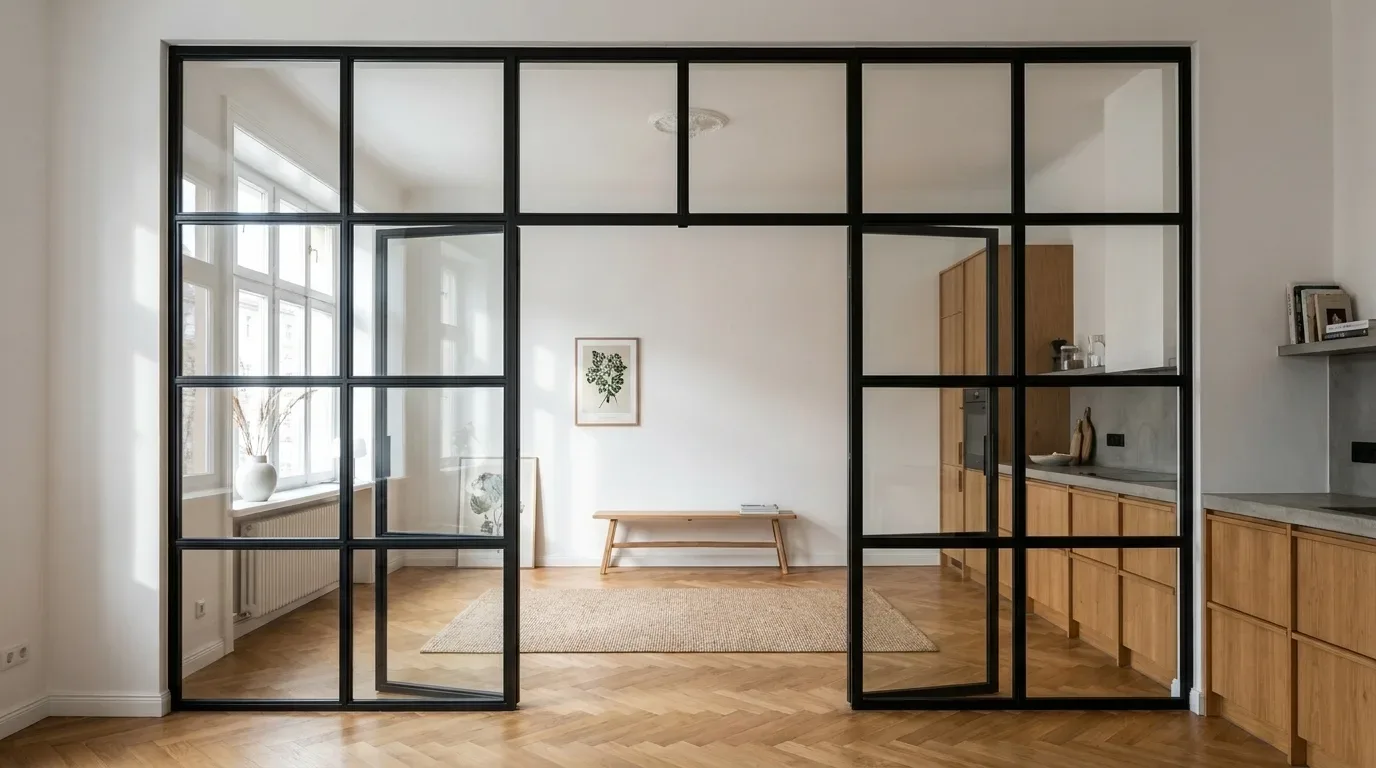

Loft Doors and Room Dividers as Architectural Connectors

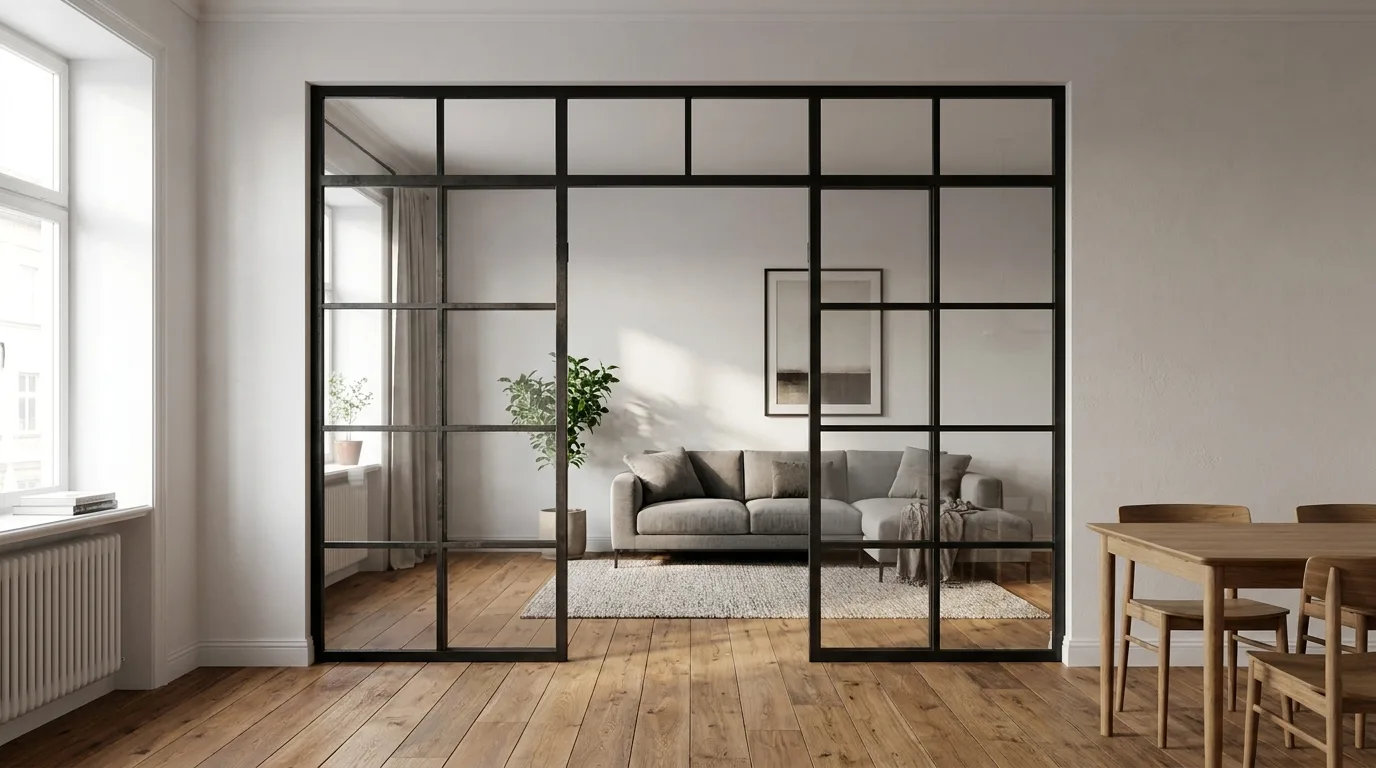

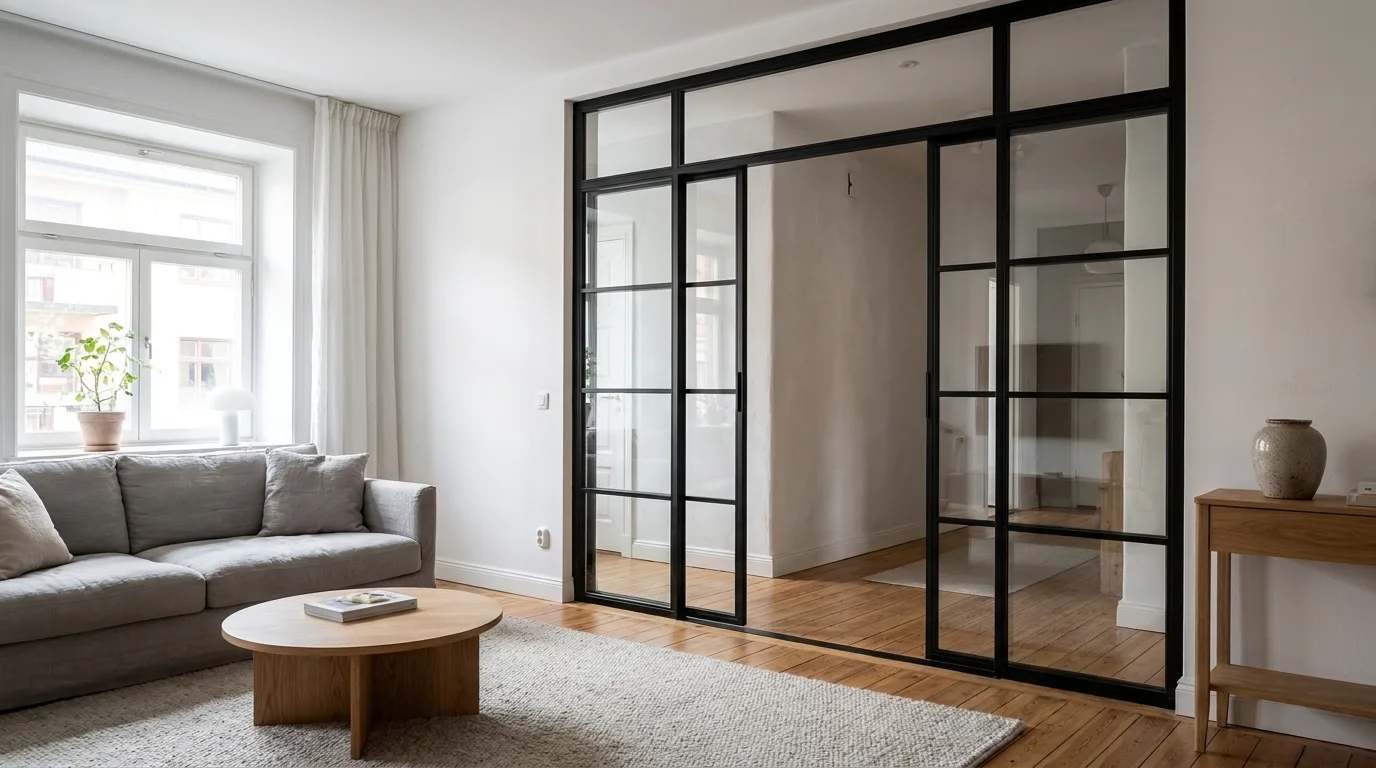

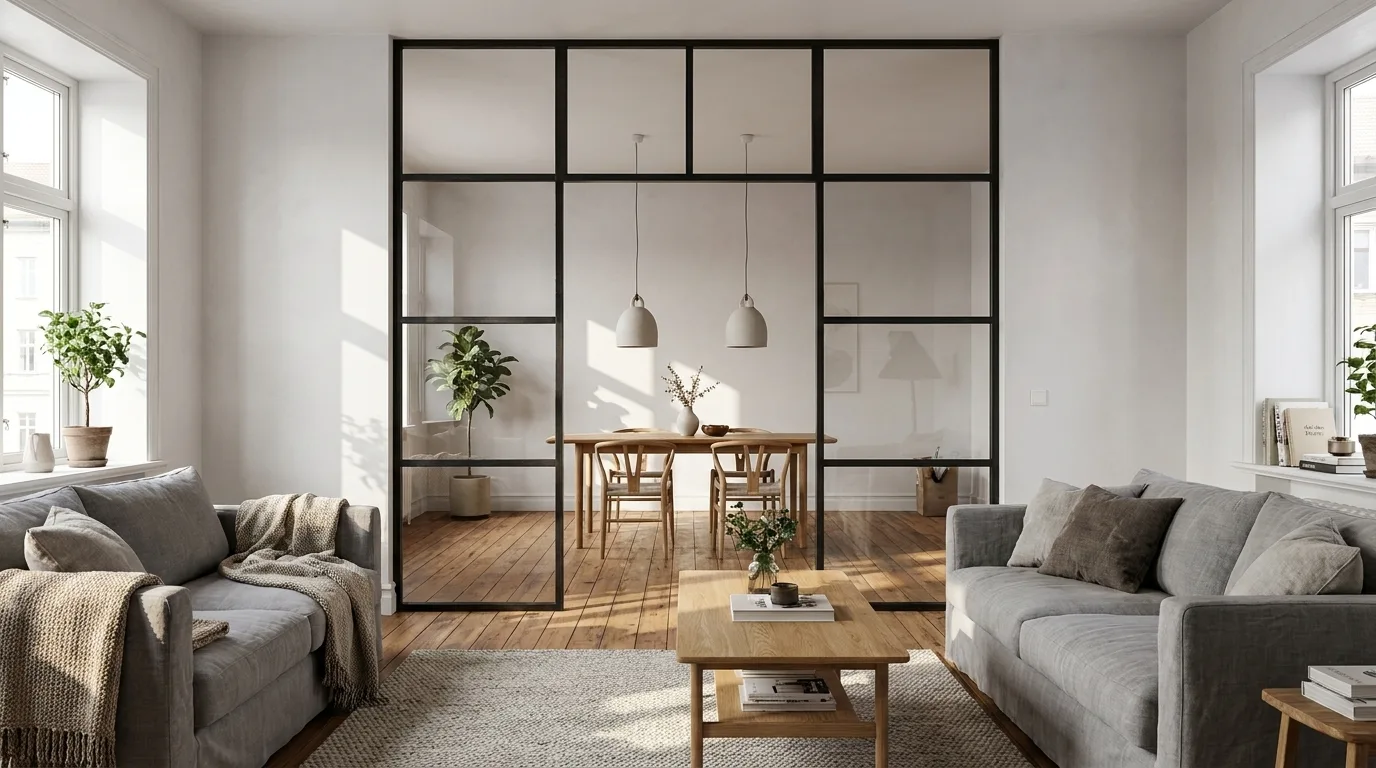

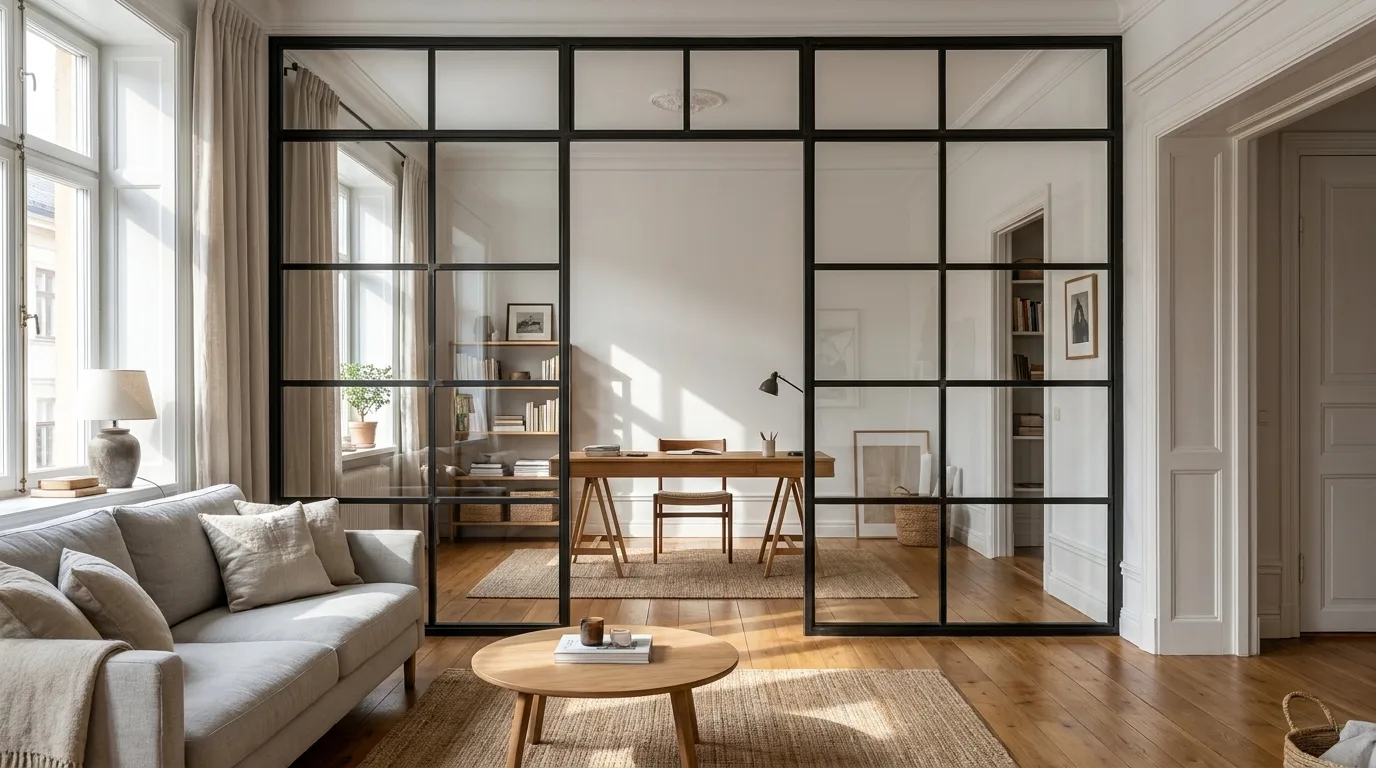

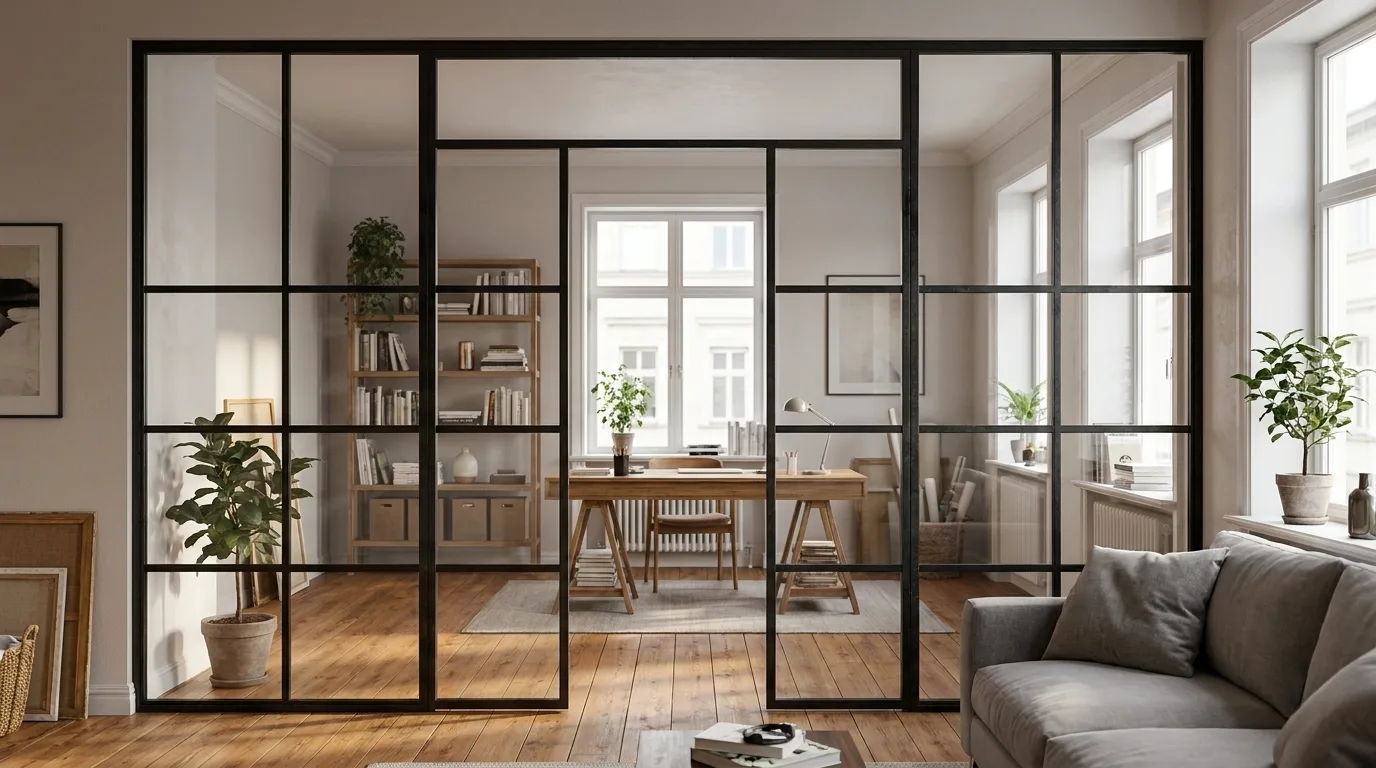

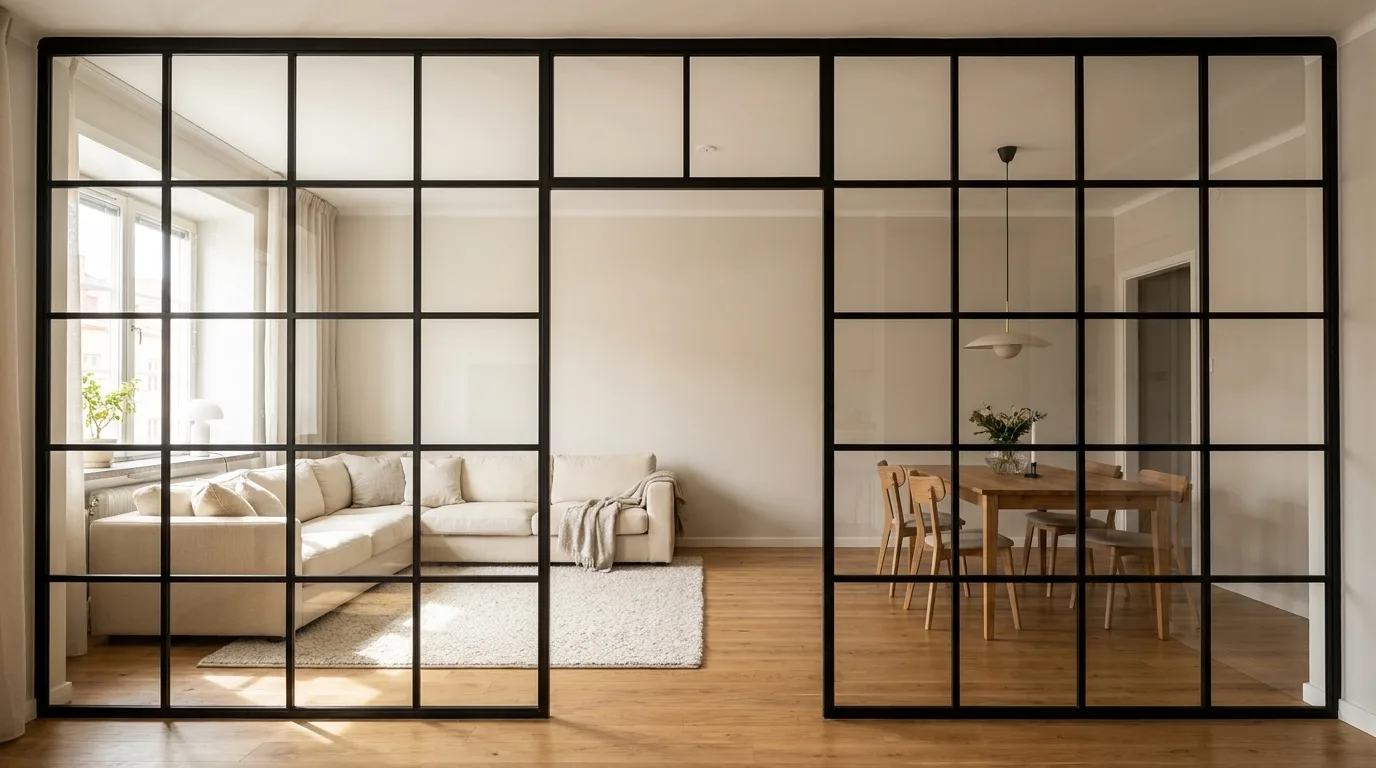

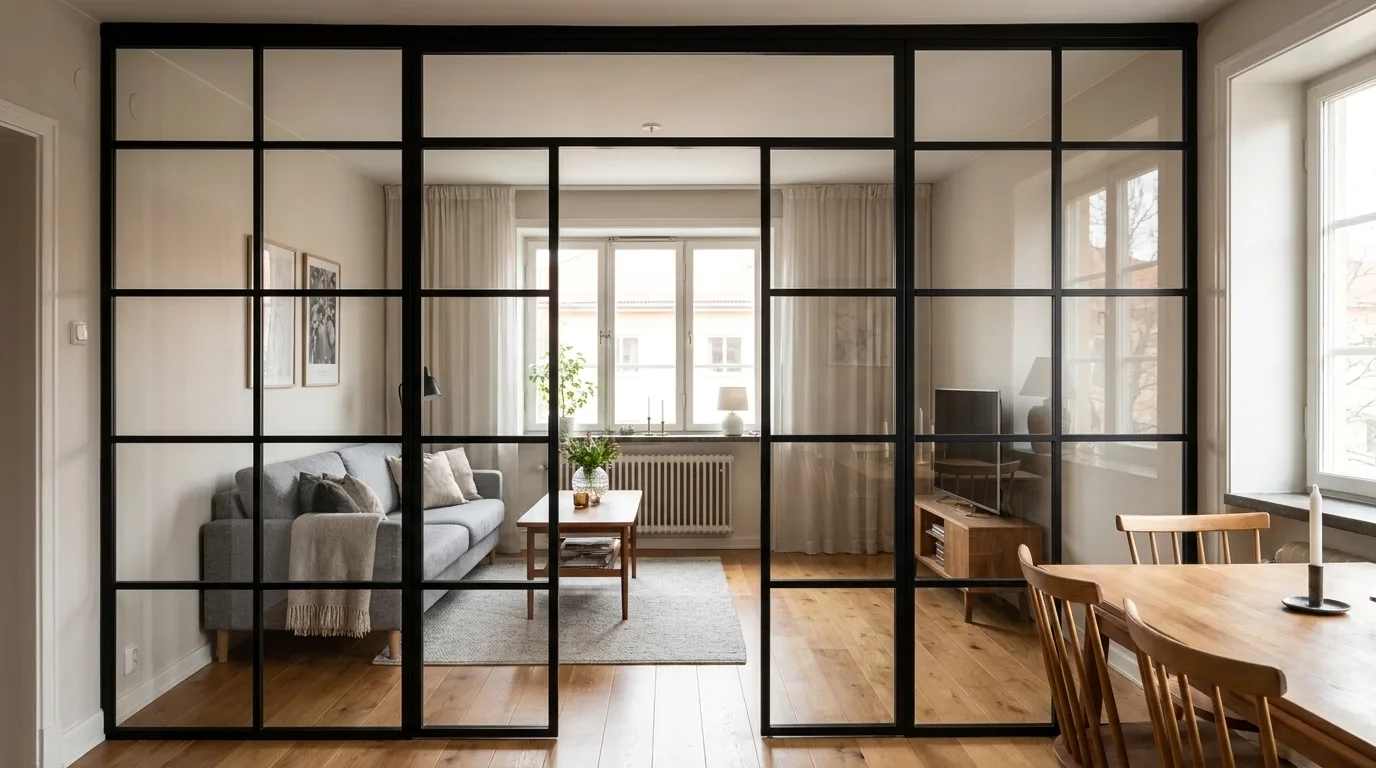

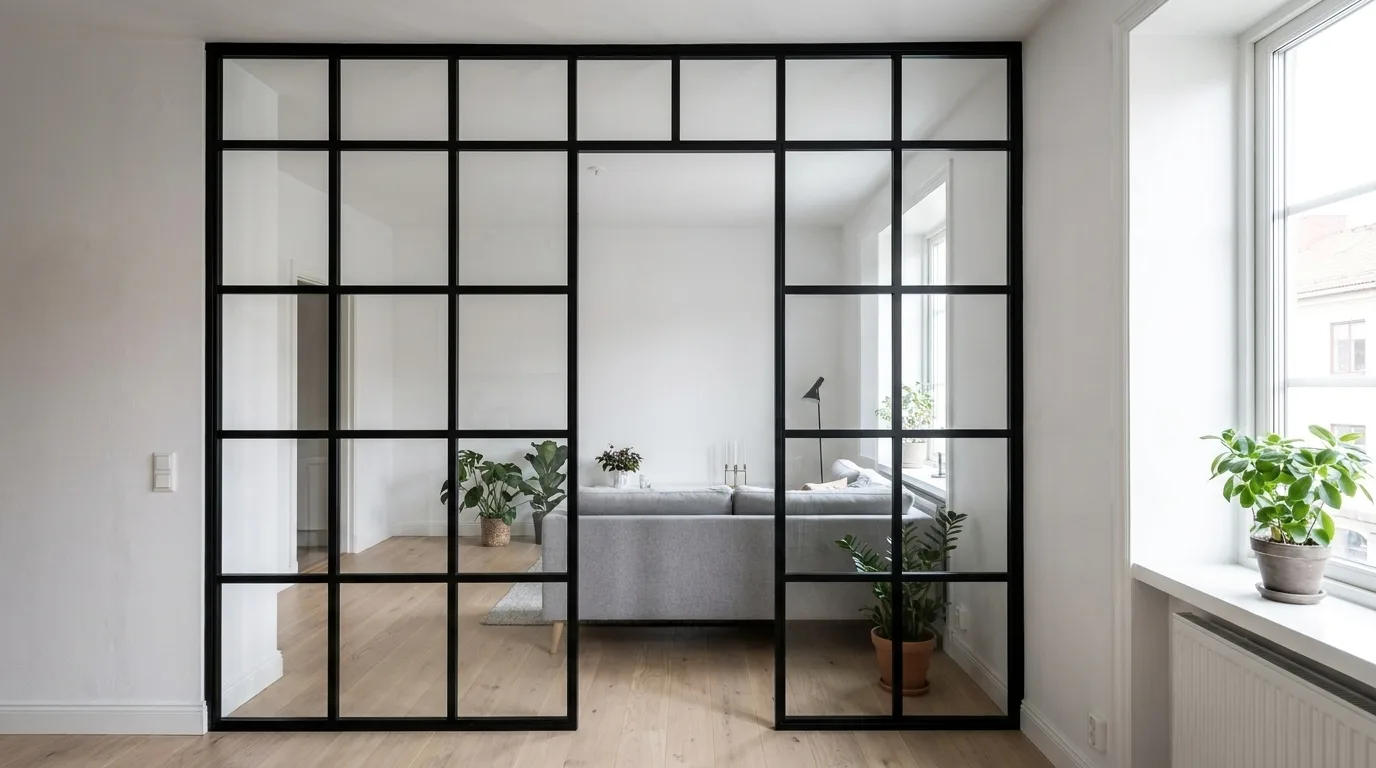

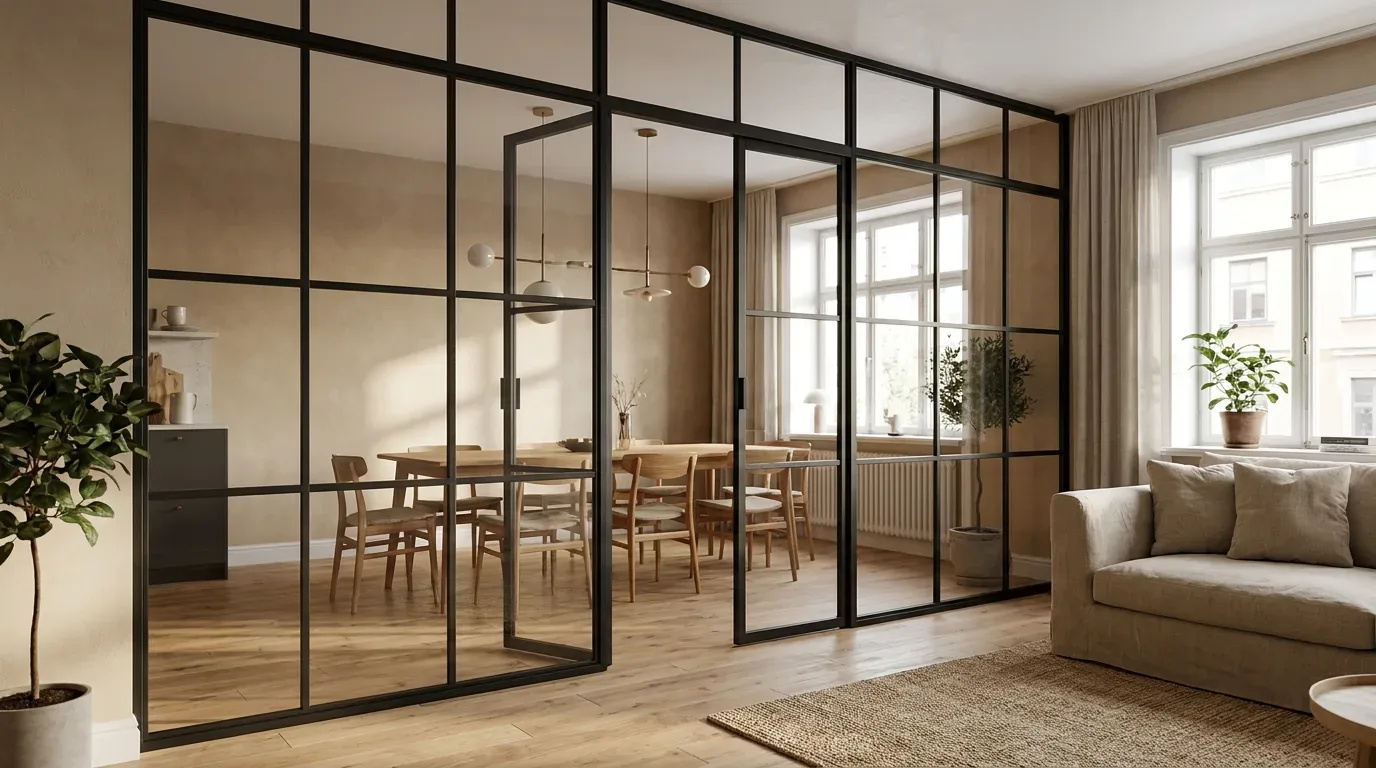

Where open living meets the need for occasional privacy, steel-and-glass structures serve two functions at once - they divide practically while connecting visually. A custom loft door can be colour-matched to both adjacent rooms simultaneously: the frame picks up a tone from one space while the glass maintains the sightline into the other. In our workshop experience, customers who initially view a loft door as a compromise between open-plan and enclosed living frequently report after installation that it actually defined the transition more elegantly than either option alone would have done.

Three Interior Styles and How to Approach Their Material Palettes

Industrial and Warehouse Aesthetic

Exposed brickwork, concrete-effect finishes and dark metal tones are the hallmarks of this style - one that translates naturally into converted textile mills, warehouse apartments and basement flats in British cities. Steel frames in RAL 9005 or RAL 7021 (black grey) sit well alongside smoked oak or oiled ash. In this context, the contrast can be unapologetically hard - restraint is not a virtue here.

Scandinavian-Influenced Interiors

Pale colours, natural materials and a strong emphasis on daylight. Steel frames in RAL 9010 (pure white) or RAL 9016 (traffic white) alongside beech or light ash create the characteristic lightness of this aesthetic. The palette stays quiet; isolated accents in black or deep navy provide contrast without dominating.

Warm Modern

Earth tones, warm greys and natural textures - a style that has become increasingly prominent in British interiors following the pandemic-driven reassessment of the home. Steel frames in RAL 7006 (beige grey) or RAL 1019 (grey beige) alongside oiled oak suit this approach well. It also accommodates unconventional RAL choices - terracotta, olive green - as accent colours, provided the timber surface stays relatively neutral.

Five Planning Mistakes We See Repeatedly

In our experience, the most common problems with custom furniture orders do not originate in production - they originate in the planning and colour-selection phase. These are the mistakes we encounter most frequently:

1. Choosing a RAL colour on screen without checking it in the room. Monitors cannot reproduce material depth. After delivery, the steel frame often reads warmer or cooler than expected. The solution is to request powder coating samples and assess them under your actual room lighting before confirming the order.
2. Selecting a timber tone and RAL colour at the same brightness level. When the wood surface and the steel frame share the same lightness value, the construction loses its visual definition and reads as heavier than intended. Build in at least one clear step of contrast in brightness.
3. Choosing a glass type without considering the rooms on both sides. Clear glass in a loft door between two very differently decorated rooms makes that colour contrast fully visible - which may be intentional, but rarely is. Where rooms clash in palette, frosted or textured glass is worth considering.
4. Introducing too many materials at once. Combining steel, oak, concrete, stone and textiles simultaneously removes the hierarchy the eye needs. Define three primary materials and let everything else recede.
5. Not accounting for how oak darkens over time. Under UV exposure, oak deepens considerably. A frame in RAL 9005 that creates a strong initial contrast will read noticeably calmer after two or three years as the timber darkens. This is not a problem - but it should be a deliberate part of the plan, not a surprise.

Measuring Accurately: What Really Matters for a Custom Fit

The most common reason a custom-made piece does not fit is incorrect measurement - not a production error. In roughly 70% of our loft door projects, customers measure different widths at the left and right sides of an opening. Walls in Victorian terraces and Edwardian semis very rarely run precisely parallel - if you measure only one side and use that figure, the door will bind on one edge or show an uneven gap.

The correct approach for measuring a loft door or room divider opening:

1. Measure the clear width at three points: top, middle and bottom. Use the smallest figure.
2. Measure the clear height at three points: left, centre and right. Use the smallest figure.
3. Allow for a fitting clearance of approximately 5mm per side (10mm total across the width).
4. Check for skirting boards, radiators and sockets within the swing arc of the door - the opening radius must be clear.
5. Check for floor unevenness: a variation of more than 3mm across the width of the opening may require a scribed or adjusted bottom edge.

One point we make consistently to customers: you enter your exact desired finished dimensions into the configurator - not your structural opening dimensions. The fitting clearances above are deducted by you before you enter the measurement. Building plans give nominal dimensions; they do not reflect what is actually there on the day. Always measure the physical opening.

Made-to-Measure vs. Off-the-Shelf: An Honest Comparison

The lead time difference is real - retailers such as IKEA can have flat-pack furniture in your home within days. The trade-off is equally real: a fixed-size, chipboard-core product will never fit a non-standard British room the way a piece built to your exact dimensions will. For rooms with character - sloped ceilings in a loft conversion, alcoves in a Victorian terrace, the slightly-off-square proportions of a 1930s semi-detached - the difference in outcome is significant.

What Affects the Price of a Custom Piece

The fixed price of any Manufaktur X piece is calculated in real time inside the 3D configurator, based on the following factors:

• Dimensions: Larger surface areas require more material and more production time.
• Timber species and surface treatment: Oiled oak, lacquered beech and stained ash each carry different material values.
• RAL colour: Standard colours (RAL 9005, RAL 9010) are typically included without a surcharge; specialist tones may carry an additional cost.
• Glass type (loft doors and room dividers only): VSG involves a more complex production process than ESG and is priced accordingly.
• Fittings and mechanisms: Pivot hinges versus standard hinges, sliding systems versus hinged doors.

Using the 3D Configurator to Match Colours and Materials Before You Order

The 3D configurator on manufakturx.co.uk renders RAL colour, timber species, surface treatment and dimensions together in real time - and recalculates the fixed price instantly with every change. In our experience, customers who work through several RAL options side by side in the configurator choose a different final colour in around 60% of cases compared to their initial instinct. That process of comparison - without needing to order physical samples or visit a showroom - is one of the most practical aspects of the tool.

The steps are straightforward:

1. Select a product (loft door, room divider, dining table, coffee table, bench, large shelf or pipe shelf)
2. Enter your exact desired dimensions
3. Choose timber species and surface treatment
4. Select a RAL colour for the steel frame
5. Choose glass type (loft doors and room dividers only)
6. Read the fixed price and save or place the order directly

Production and Delivery: What Happens After You Order

Once an order is confirmed, production begins in the EU. Every piece goes through the same sequence: steel frame cutting, welding and grinding; powder coating; timber processing and surface treatment; glass cutting and sealing (loft doors and room dividers only); assembly and quality inspection; packaging and handover to the freight carrier.

Production time is 5-6 weeks across all products. That is the time the process genuinely requires - cutting any of those stages short is not something we would do or promise. Delivery to the UK is arranged as part of the order, with all customs duties and import costs handled so there are no unexpected charges on arrival.

Before Installation: What to Check in Advance

A made-to-measure piece arrives built to your exact specification - but the wall, floor and opening it fits into may still present surprises. Check the following before delivery:

• Wall construction: Solid masonry (brick, concrete block) or stud partition? Stud walls require cavity or heavy-duty fixings that need to be sourced separately before installation day.
• Floor finish: Is the loft door being fitted over hardwood, tiles or carpet? The bottom seal needs to suit the surface.
• Sockets and switches within the swing arc: These are frequently overlooked and either need relocating or require the door to open in the opposite direction.
• Radiators: A radiator positioned within the swing arc of a door is one of the most common installation-day discoveries - and one of the most avoidable with a proper pre-check.

Colour Psychology: How Frame and Timber Colours Affect How a Room Feels

Colour choices influence mood and concentration in ways that are well documented in environmental psychology. Blue tones have a calming and focus-supporting effect. Yellow and orange activate a space. Green encourages relaxation. Grey reads as neutral and adaptable - which is part of why anthracite frames work across so many interior contexts.

For practical decisions: a steel frame in RAL 9005 in a home office set against a blue-grey wall reinforces concentration. The same frame in a dining room with warm terracotta tones may read as too dominant - where RAL 7006 (beige grey) would hold the space more comfortably. Context always modifies the result.

How Natural Materials Age - and Why That Is a Design Advantage

Solid timber is a material that changes visibly over time - and that is a quality, not a flaw. Oiled oak develops a patina that deepens and warms the surface over years of use. A steel frame in RAL 9005 that creates a strong initial contrast with pale new oak will read as considerably calmer after three to five years as the timber darkens under natural light. Powder coating - unlike paint - resists scratching, maintains an even surface colour and does not chip at edges, which means the frame remains consistent as the timber around it evolves.

Choosing durable materials - solid timber, powder-coated steel, toughened safety glass - also means choosing pieces that do not need replacing every few years. That is as much a design decision as an environmental one: furniture planned to last decades needs to be able to age gracefully alongside the room.

Acoustic Considerations in Material Selection

Hard, smooth surfaces - glass, steel, polished concrete - reflect sound and can make rooms feel echoey. Soft furnishings, textured walls and natural materials absorb it. VSG glass provides measurably greater acoustic attenuation than ESG of the same thickness - which in a loft conversion or open-plan Victorian terrace where sound carries easily between floors and rooms can be a genuine deciding factor beyond the safety argument alone.

A balanced mix of sound-reflecting and sound-absorbing materials contributes to acoustic comfort as much as visual harmony. In spaces with a lot of steel and glass, introducing rugs, curtains and upholstered seating counteracts excessive reverberation without requiring any structural change.

Colour Combinations That Have Stood the Test of Time

Some pairings have proven consistently reliable across decades of production - not because they follow fashion, but because they rest on contrast relationships the eye finds inherently satisfying:

• Jet black (RAL 9005) with natural oiled oak - the classic industrial pairing
• Anthracite (RAL 7016) with smoked ash - subdued, composed contrast
• Pure white (RAL 9010) with natural beech - light, airy, enduringly clean
• Grey beige (RAL 1019) with natural beech - warm, quiet, versatile

These four combinations provide a stable foundation. Personal accents - an unexpected RAL tone, a grey or blue-toned stain on the timber - can be introduced with confidence when the underlying structure is solid.

Seasonal Refreshes Without Replacing the Furniture

Made-to-measure pieces in solid timber and powder-coated steel are built to last - the atmosphere around them does not have to remain static. Cushions, throws, curtains and rugs allow seasonal colour shifts without changing the material foundation. In spring and summer, fresh greens and soft blues as textile accents create a counterpoint to a dark steel frame. In autumn and winter, warm earthy tones and tactile textures reinforce the warmth already present in the timber. The frame remains the constant, steady element throughout - present in every season without ageing out of it.

Configure Your Combination Now

Manufaktur X is a direct manufacturer with production in the EU, offering made-to-measure furniture and doors across the UK - all customs duties and import costs handled as part of every order. All products are built to your exact dimensions: loft doors, room dividers, dining tables, coffee tables, benches, large shelves and pipe shelves. The 3D configurator shows your chosen RAL colour, timber species and dimensions in real time and calculates a fixed price instantly.

Frequently Asked Questions

Can I change the RAL colour of my steel frame after it has been delivered?

Recoating on site is not practical - powder coating requires oven temperatures that cannot be replicated in a domestic setting. In practice, recoating means returning the frame to the production facility. This is why we strongly recommend assessing powder coating samples under your room's actual lighting before confirming your order. Samples are available on request.

Which timber species is the most practical for everyday use?

Lacquered beech offers the strongest resistance to moisture and staining. Oiled oak is easier to spot-treat when surface marks occur - a localised application of wood oil makes most scratches effectively invisible. Ash sits between the two: it is a hard timber (comparable in hardness to oak), takes staining well, and in an oiled finish is straightforward to maintain. The right choice depends on whether your priority is maximum protection (lacquer) or easy local repair (oil).

What should I do if my wall opening is not square?

If the variation across the opening exceeds 5mm, note this in the configurator comments field or contact us before placing the order. In these cases the bottom edge of the door can be scribed to follow the floor profile, or a cover strip can be produced to bridge any gap - both are entirely achievable with a made-to-measure piece in a way that a standard off-the-shelf product simply cannot accommodate.

Is VSG glass required for loft doors?

No. ESG toughened safety glass meets the requirements for safety glazing and is the appropriate specification for the majority of loft door installations. VSG is worth specifying where acoustic performance matters, where young children are present, or where the door is in a high-traffic location such as a hallway between a kitchen and a living area.

Can I order multiple products in the same RAL colour to create a cohesive scheme throughout my home?

Yes - and it is one of the most frequently requested approaches in our workshop. A loft door, room divider, dining table and large shelf can each be configured with the same RAL colour in the configurator. Because all pieces are produced in the same facility, colour consistency between components is guaranteed.
